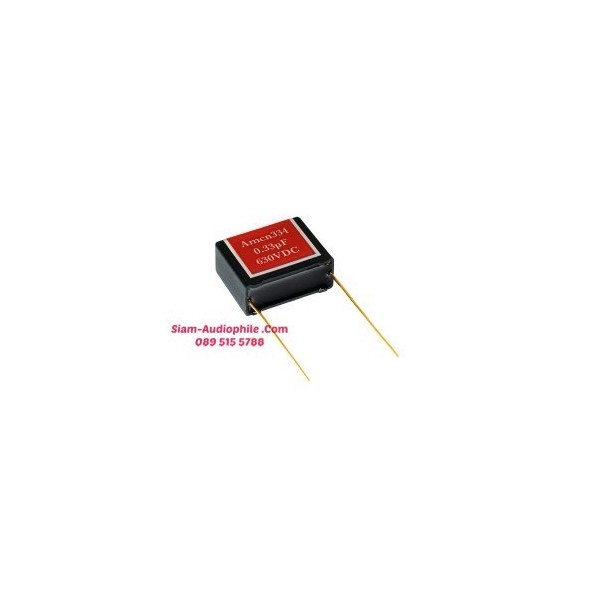

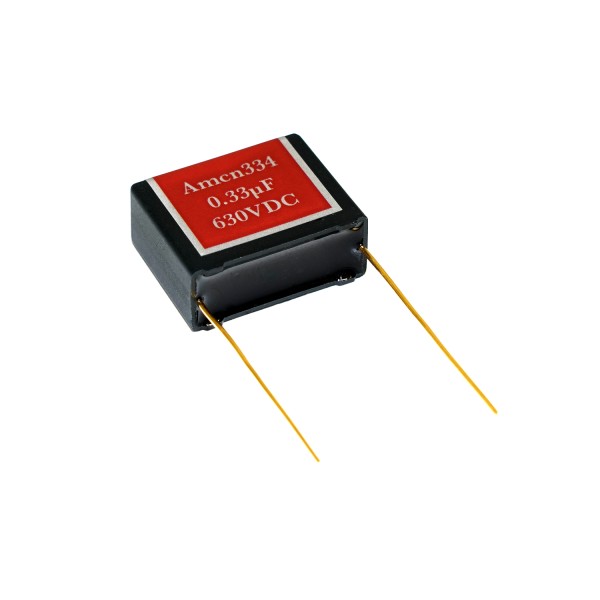

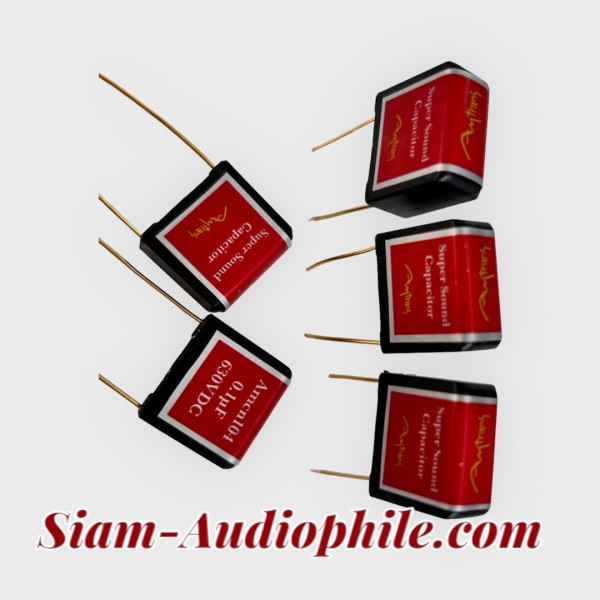

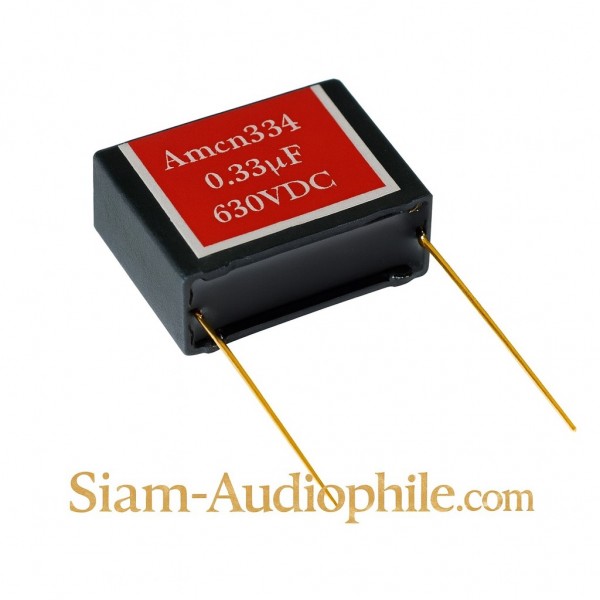

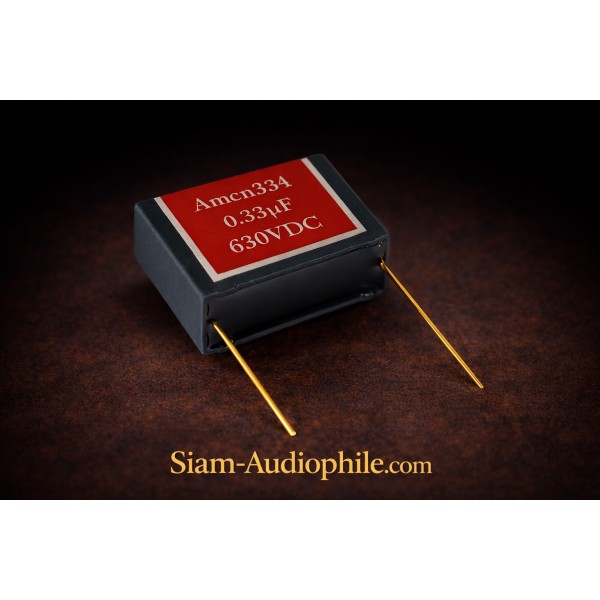

Amtrans AMCN Audio Grade Capacitors

รายละเอียดและราคา

Amtrans AMCN

Film capacitors for premium

Features

•High rated voltage(630V) suitable for electron tubes

•Gold plated OFC lead wire without nickel ground

•Wide range of usage, ampliﬁer to speakers

• Adopt aluminum metalized polypropylene film for higher quality of sound

•RoHS compliant

uF Vdc Price/pc.

0.01uF 630Vdc = 320

0.022uF 630Vdc = 330

0.033uF 630Vdc = 330

0.047uF 630Vdc = 340

0.10uF 630Vdc = 340

0.22uF 630Vdc = 340

0.33uF 630Vdc = 370

0.47uF 630Vdc = 500

1.0uF 630Vdc = 740

0.01uF 630Vdc 330฿

0.022uF 630Vdc 340฿

0.033uF 630Vdc 340฿

0.047uF 630Vdc 350฿

0.10uF 630Vdc 350฿

0.22uF 630Vdc 360฿

0.33uF 630Vdc 370฿

0.47uF 630Vdc 500฿

1.0uF 630Vdc 740฿

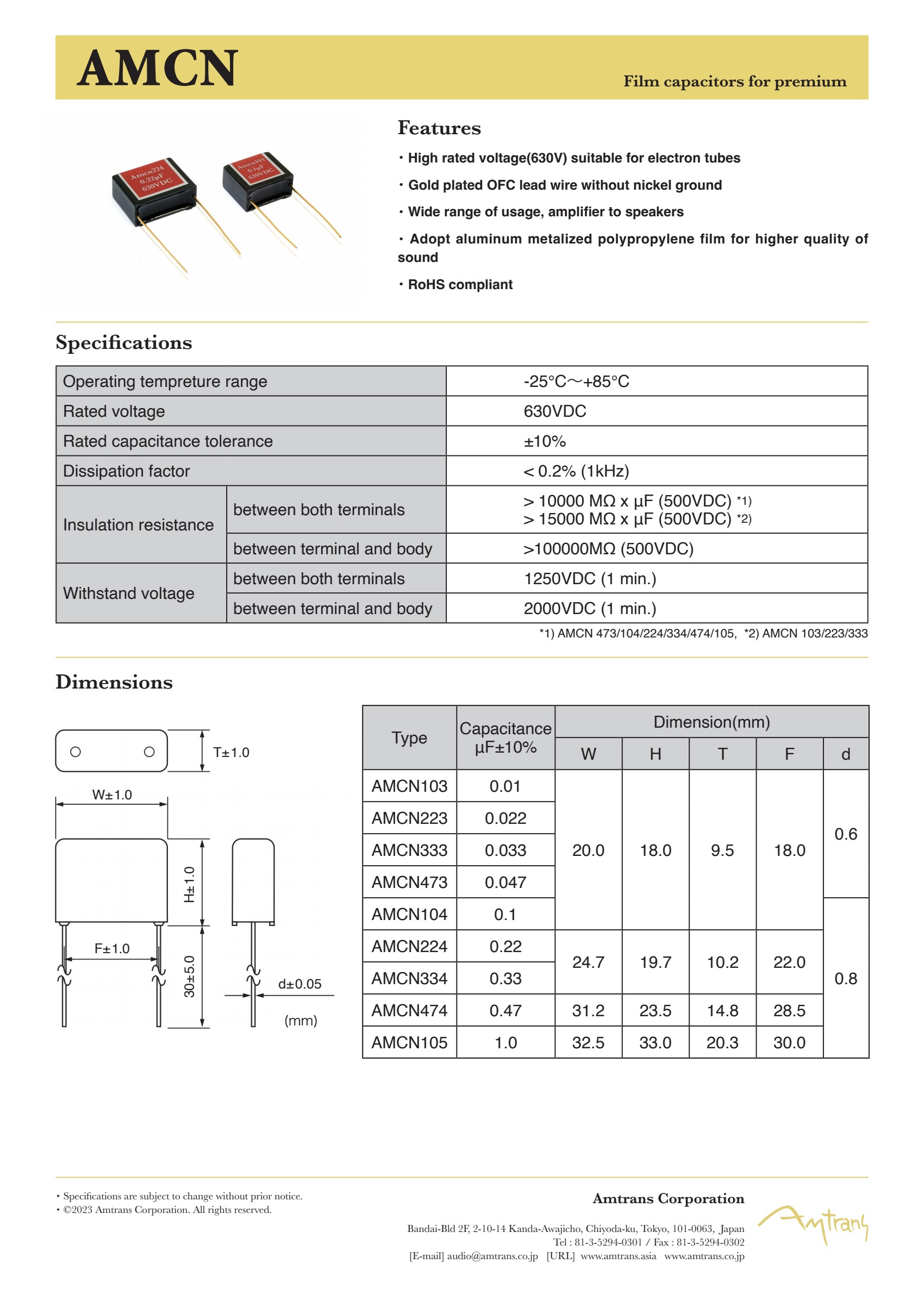

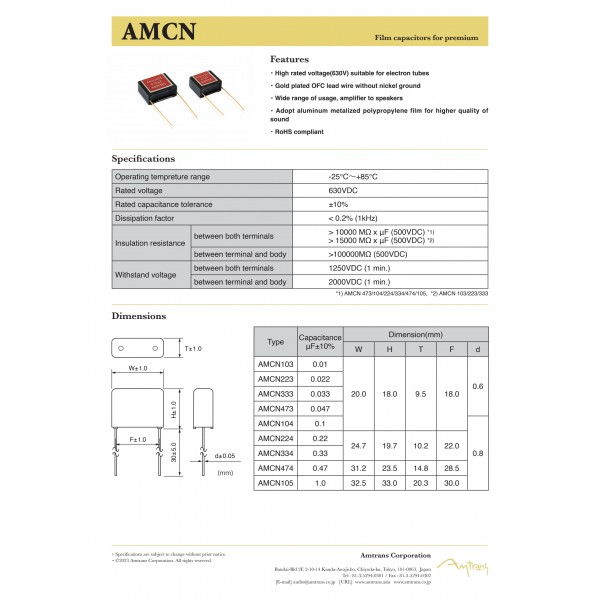

Speciﬁcations

Operating tempreture range

: -25℃^〜+85℃

Rated voltage

: 630VDC

Rated capacitance tolerance

: ±10%

Dissipation factor

:< 0.2% (1kHz)

#Insulation resistance

-between both terminals

: > 10000 MΩ x μF (500VDC) ^*1): > 15000 MΩ x μF (500VDC) ^*2)

-between terminal and body

: >100000MΩ (500VDC)

#Withstand voltage

-between both terminals

: 1250VDC (1 min.)

-between terminal and body

: 2000VDC (1 min.)

(*1) AMCN 473/104/224/334/474/105, *2) AMCN 103/223/333)

Dimensions

Type	Capacitance μF±10%	Dimension(mm)
		W	H	T	F	D


AMCN103	0.01	20.0	18.0	9.5	18.0	0.6

AMCN223	0.022
AMCN333	0.033

AMCN473	0.047
AMCN104	0.1					0.8

AMCN224	0.22	24.7	19.7	10.2	22.0


AMCN334	0.33

AMCN474	0.47	31.2	23.5	14.8	28.5

AMCN105	1.0	32.5	33.0	20.3	30.0
