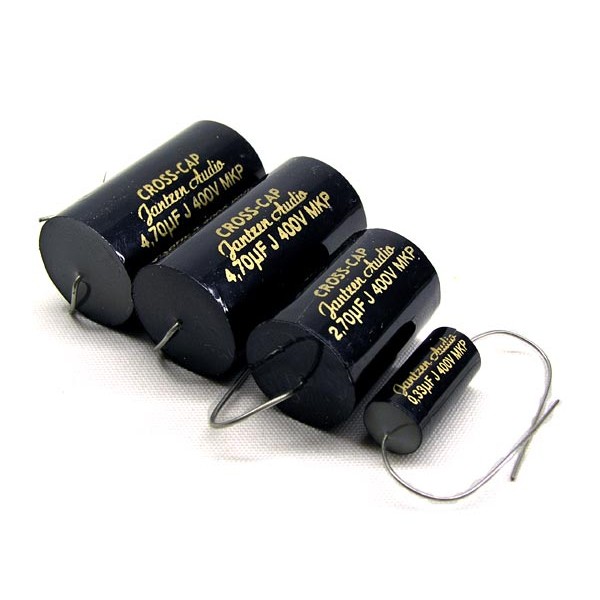

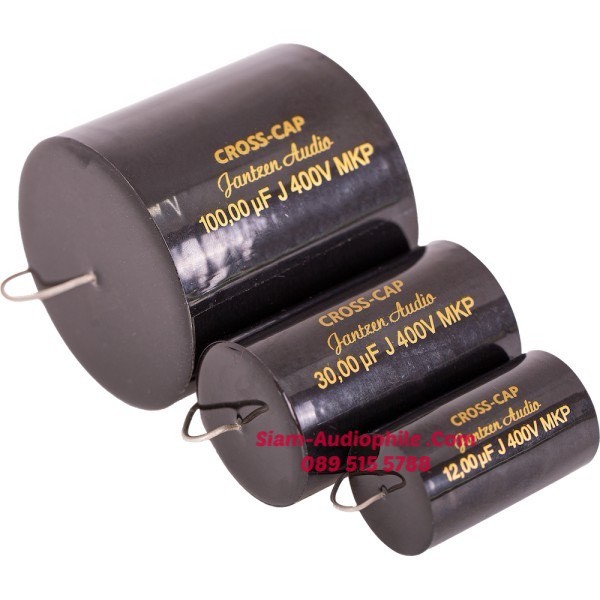

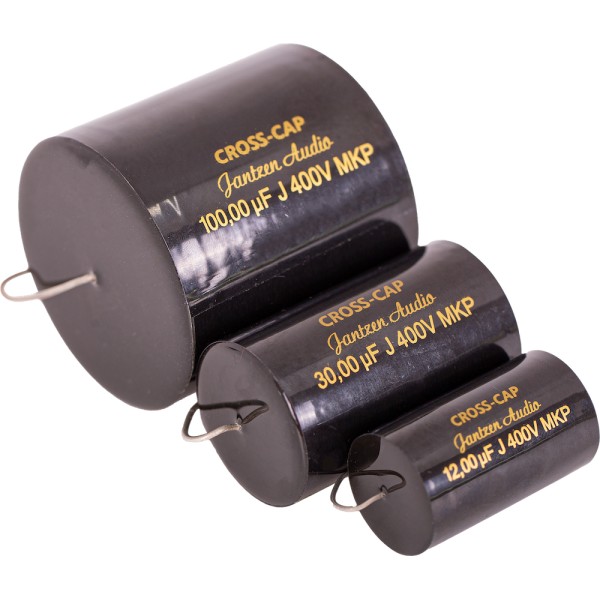

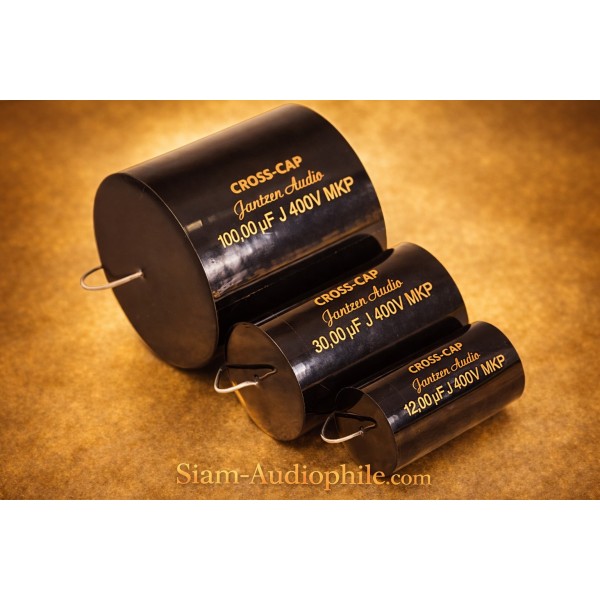

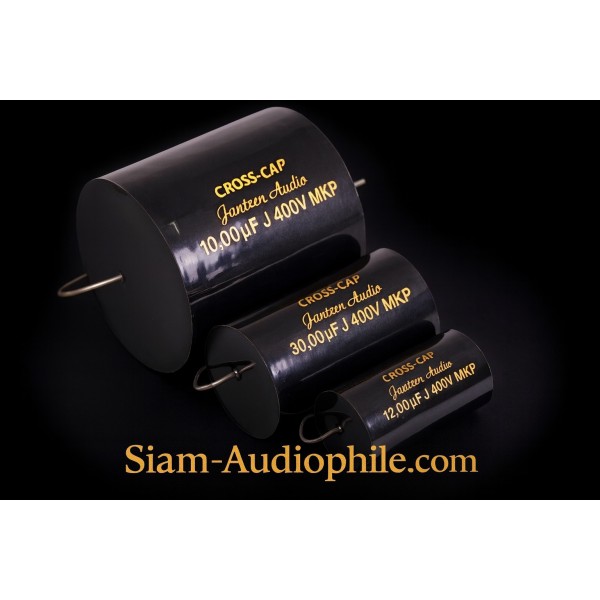

Jantzen Cross-cap
CROSS CAP
Metalized polypropylene foil capacitor

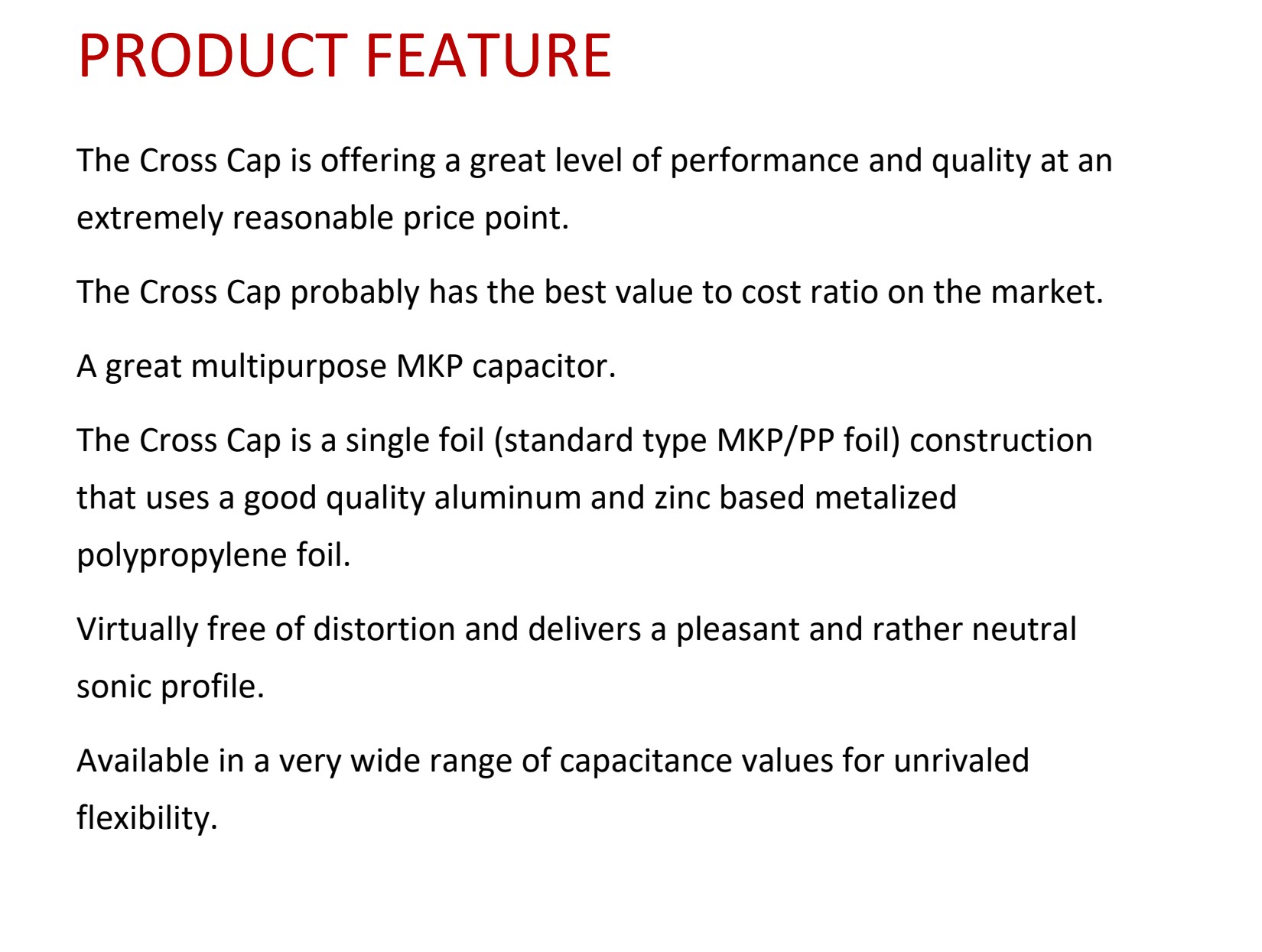

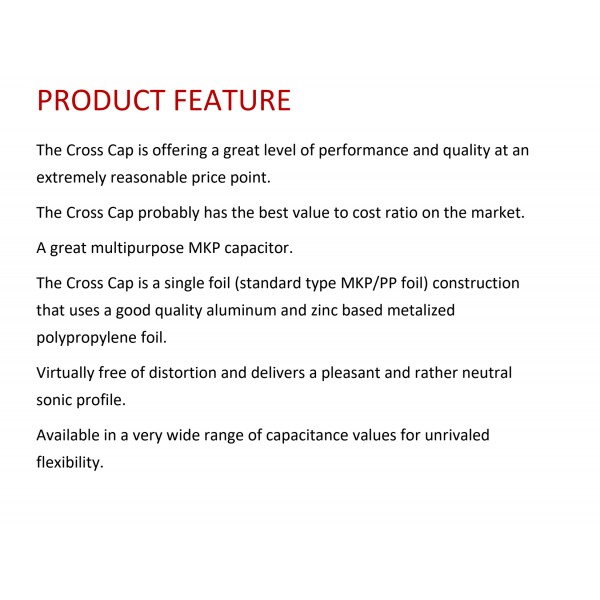

PRODUCT FEATURE
The Cross Cap offers great performance and quality, at a very reasonable price point.This is our entry level audiophile multipurpose capacitor.The Cross Cap is available in a very wide range of capacitance values. Made from high quality metalized polypropylene foil.Single foil (standard type MKP/PP foil) construction.The Cross Cap is virtually free of distortion and delivers a pleasant and rather neutral sonic profile.

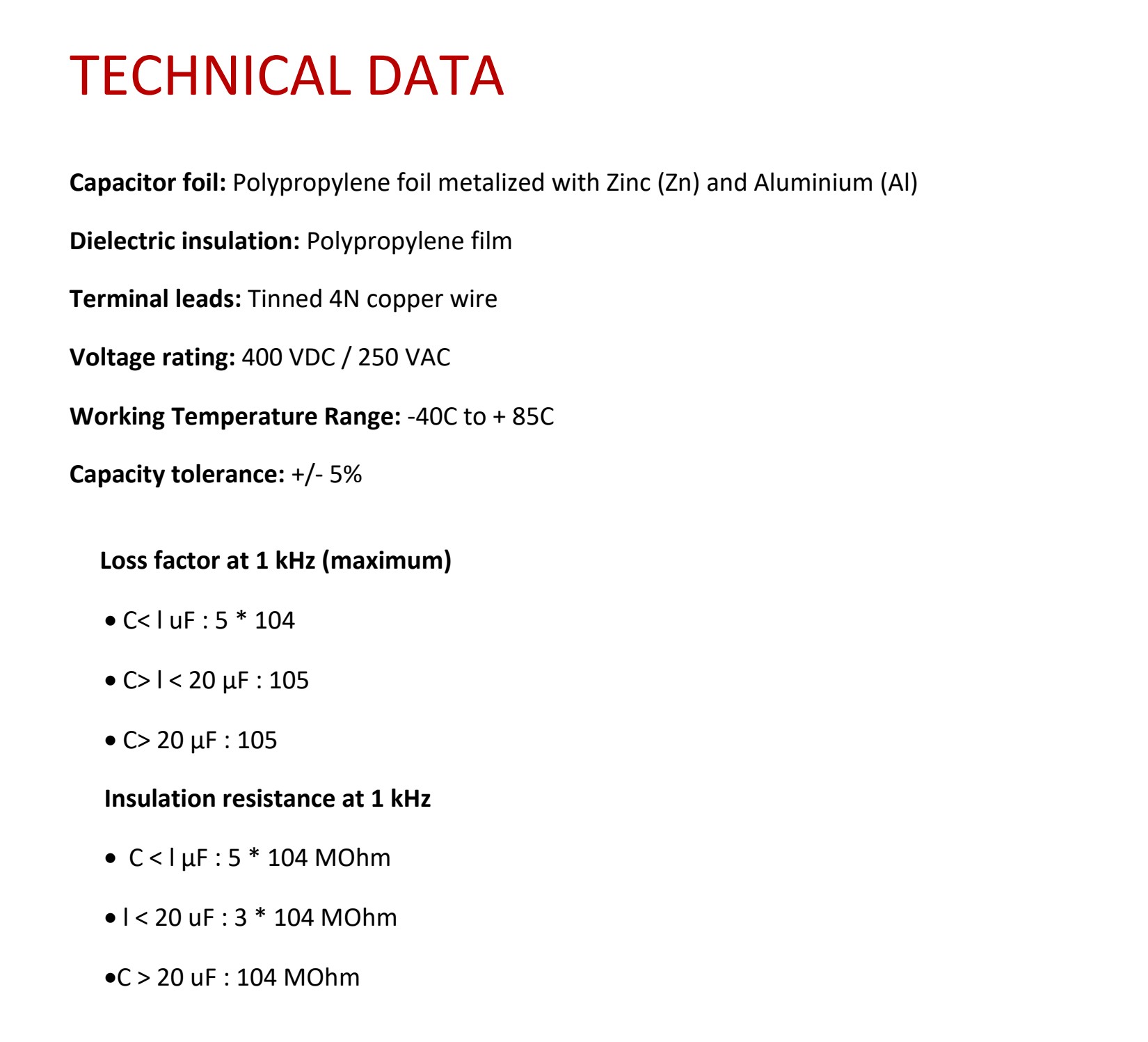

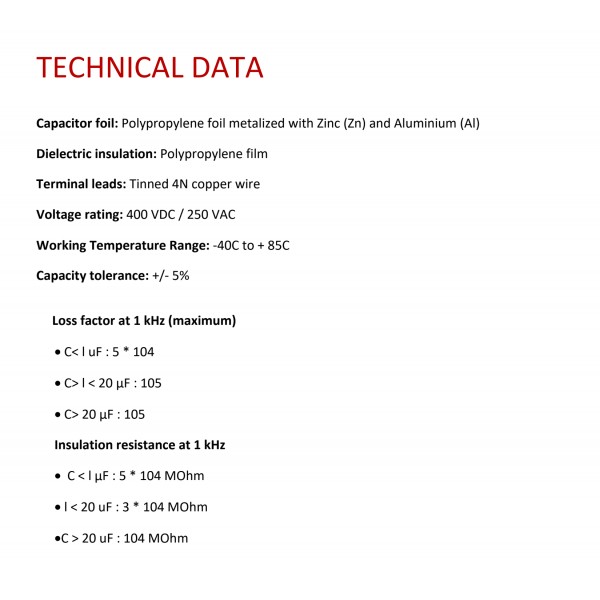

TECHNICAL DATA
Capacitor foil: Polypropylene foil metalized with Zinc (Zn) and Aluminium (Al) Dielectric insulation: Polypropylene film Terminal leads: Tinned 4N copper wire Voltage rating: 400 VDC / 250 VAC Working Temperature Range: -40C to + 85C Capacitance tolerance: +/- 5%
# Loss factor at 1 kHz (maximum) # Insulation resistance at 1 kHz
C< l uF : 5 * 104 C < l µF : 5 * 104 MOhm
C> l < 20 µF : 105 l < 20 uF : 3 * 104 MOhm
C> 20 µF : 105 C > 20 uF : 104 MOhm
Iตารางราคา CROSS CAP
VDC | Dia. | Hor. | Price/Ea. | |
uF | mm | mm | (THB) | |
0.10 | 400 | 7 | 18 | 85 |
0.12 | 400 | 7 | 18 | 85 |
0.15 | 400 | 8 | 19 | 85 |
0.18 | 400 | 8 | 19 | 86 |
0.22 | 400 | 9 | 25 | 90 |
0.27 | 400 | 9 | 19 | 90 |
0.30 | 400 | 9 | 19 | 90 |
0.33 | 400 | 9 | 25 | 95 |
0.39 | 400 | 9 | 25 | 95 |
0.43 | 400 | 10 | 25 | 95 |
0.47 | 400 | 10 | 25 | 100 |
0.50 | 400 | 10 | 25 | 100 |
0.51 | 400 | 10 | 25 | 100 |
0.56 | 400 | 11 | 25 | 100 |
0.68 | 400 | 11 | 25 | 105 |
0.82 | 400 | 12 | 25 | 105 |
1.00 | 400 | 11 | 31 | 115 |
1.10 | 400 | 12 | 31 | 120 |
1.20 | 400 | 12 | 31 | 125 |
1.50 | 400 | 14 | 31 | 130 |
1.60 | 400 | 15 | 31 | 135 |
1.80 | 400 | 16 | 31 | 140 |
2.00 | 400 | 15 | 31 | 145 |
2.20 | 400 | 15 | 36 | 150 |
2.40 | 400 | 15 | 36 | 160 |
2.70 | 400 | 17 | 36 | 170 |
3.00 | 400 | 18 | 36 | 175 |
3.30 | 400 | 18 | 36 | 185 |
3.60 | 400 | 16 | 36 | 195 |
3.90 | 400 | 17 | 36 | 205 |
4.10 | 400 | 17 | 36 | 215 |
4.30 | 400 | 17 | 36 | 220 |
4.50 | 400 | 18 | 36 | 225 |
4.70 | 400 | 18 | 36 | 235 |
5.10 | 400 | 19 | 36 | 240 |
5.40 | 400 | 20 | 36 | 250 |
5.60 | 400 | 21 | 36 | 255 |
6.20 | 400 | 21 | 36 | 270 |
6.80 | 400 | 24 | 36 | 285 |
7.50 | 400 | 23 | 36 | 295 |
8.20 | 400 | 24 | 36 | 305 |
9.10 | 400 | 25 | 36 | 320 |
10.00 | 400 | 26 | 36 | 325 |
12.00 | 400 | 26 | 44 | 350 |
15.00 | 400 | 29 | 44 | 380 |
16.00 | 400 | 29 | 44 | 400 |
18.00 | 400 | 31 | 44 | 430 |
20.00 | 400 | 33 | 44 | 440 |
22.00 | 400 | 34 | 44 | 470 |
25.00 | 400 | 32 | 58 | 490 |
27.00 | 400 | 32 | 58 | 550 |
30.00 | 400 | 35 | 58 | 600 |
33.00 | 400 | 36 | 58 | 640 |
36.00 | 400 | 38 | 56 | 740 |
39.00 | 400 | 39 | 58 | 840 |
47.00 | 400 | 44 | 58 | 880 |
51.00 | 400 | 44 | 58 | 890 |
56.00 | 400 | 46 | 58 | 1,060 |
68.00 | 400 | 50 | 58 | 1,150 |
82.00 | 400 | 54 | 58 | 1,450 |
100.00 | 400 | 59 | 58 | 1,700 |
120.00 | 400 | 42 | 112 | 2,350 |
150.00 | 400 | 45 | 112 | 2,650 |
220.00 | 400 | 57 | 112 | 3,650 |
270.00 | 400 | 62 | 112 | 4,200 |
300.00 | 400 | 69 | 112 | 5,000 |
330.00 | 400 | 69 | 112 | 5,200 |
ท่านสามารถสั่งซื้อสินค้าได้ที่ช่องทาง
TEL.089 515 5788
LineID:siamaudiophile
