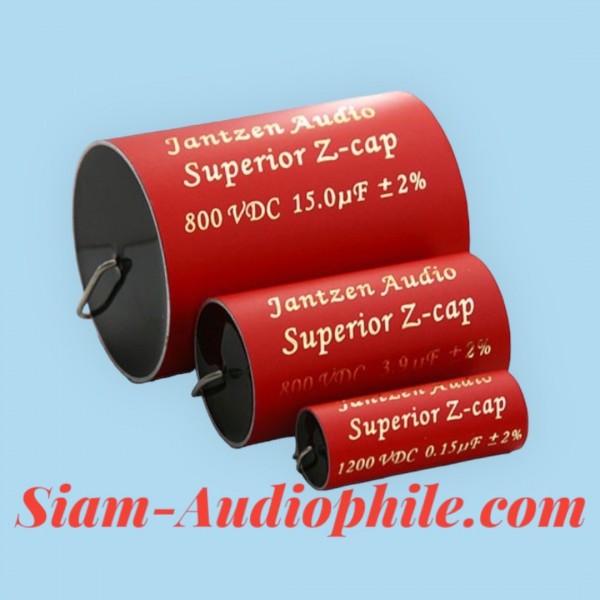

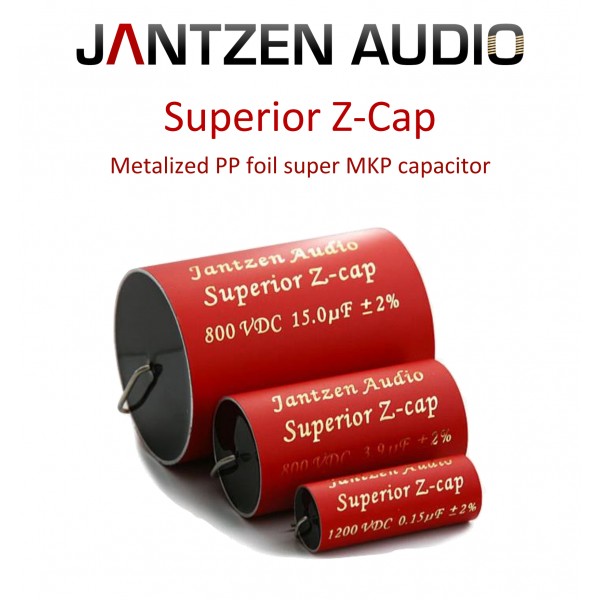

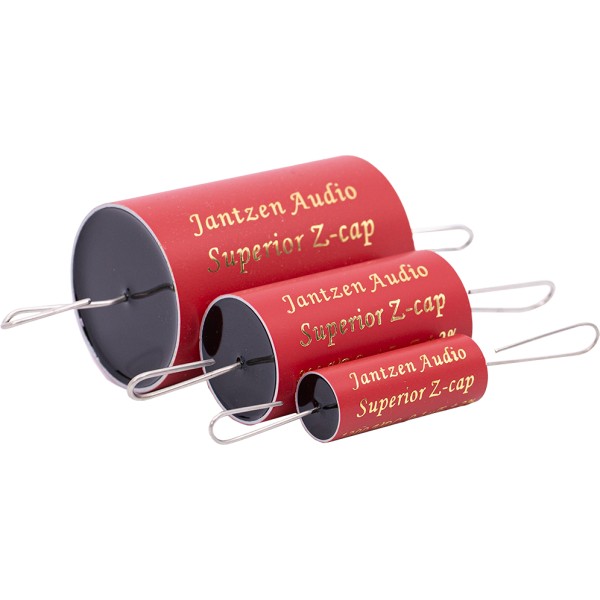

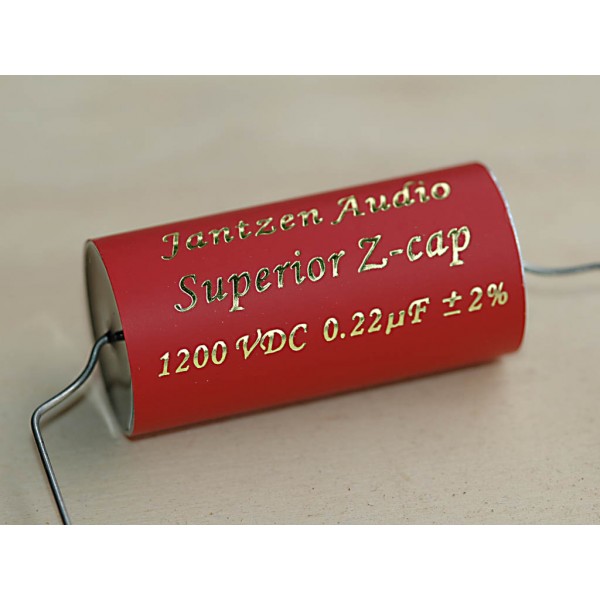

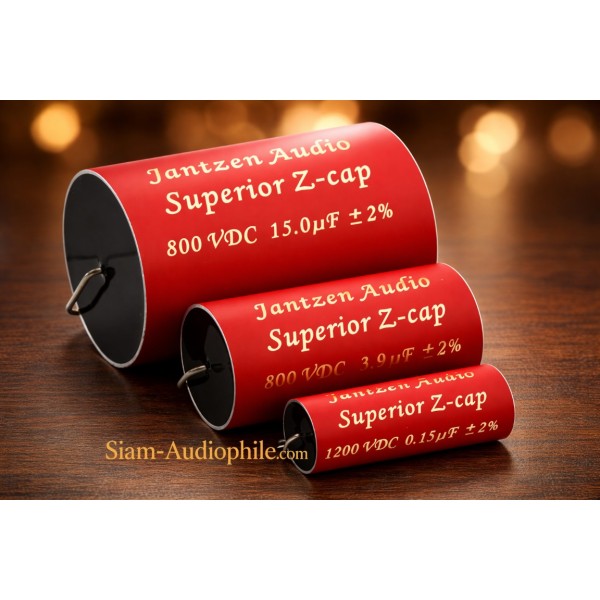

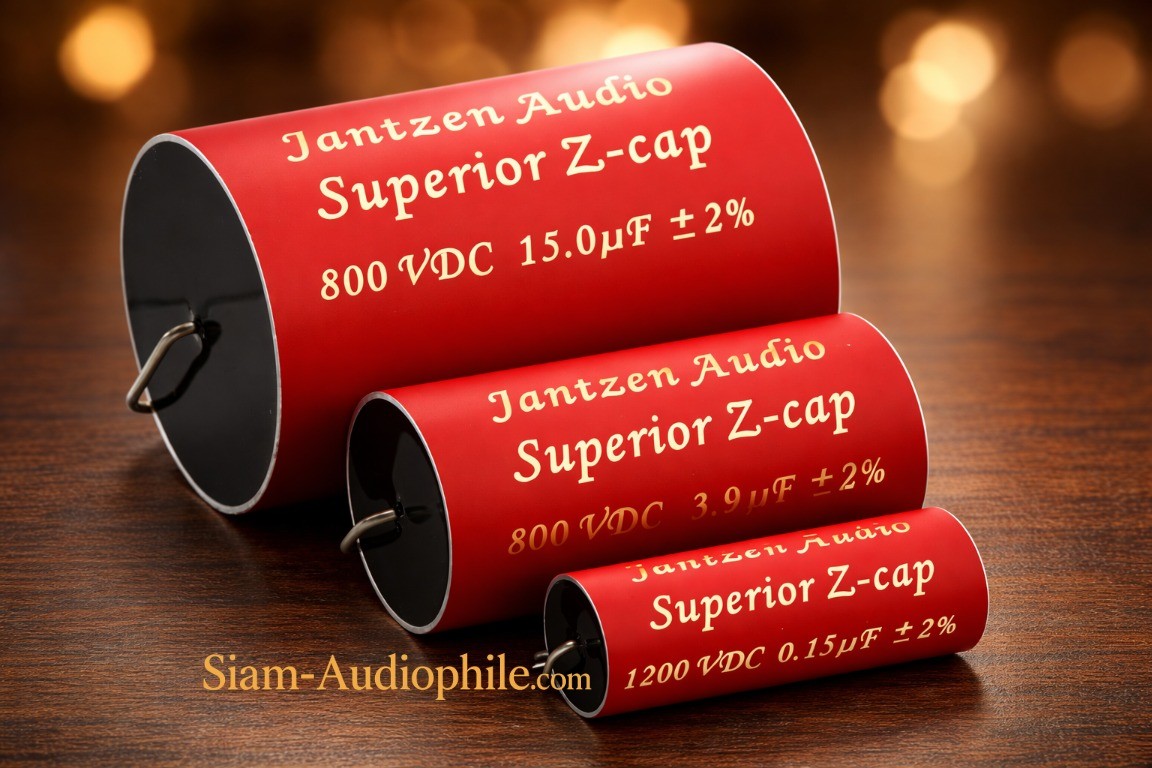

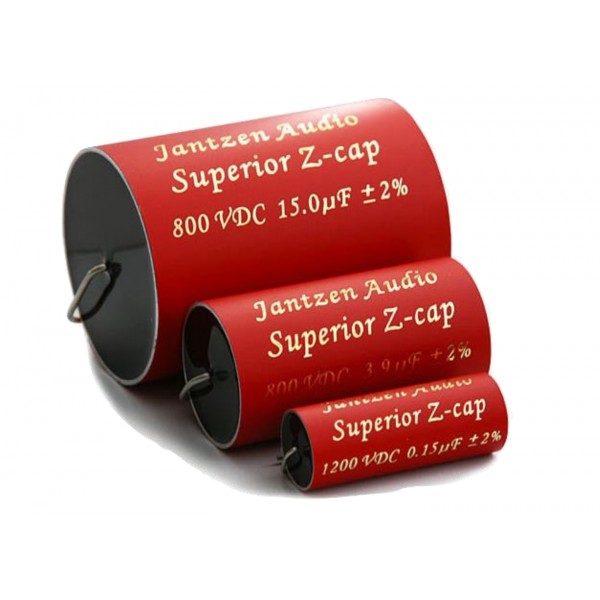

Superior Z-cap

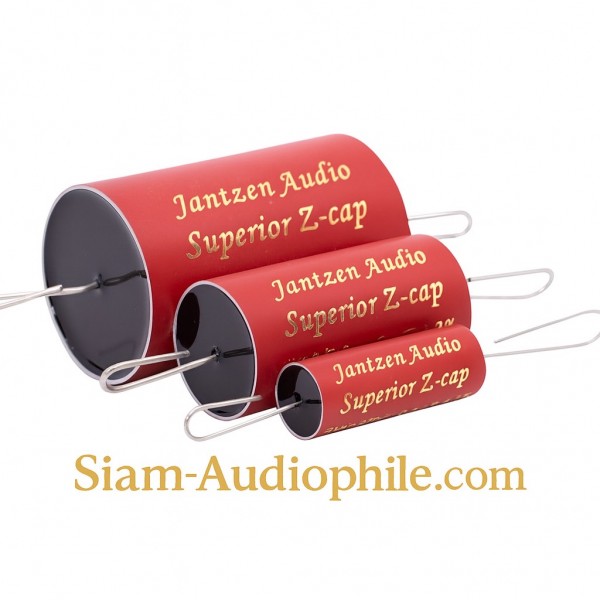

  SUPERIOR Z-CAP

Metalized polypropylene foil super-capacitor

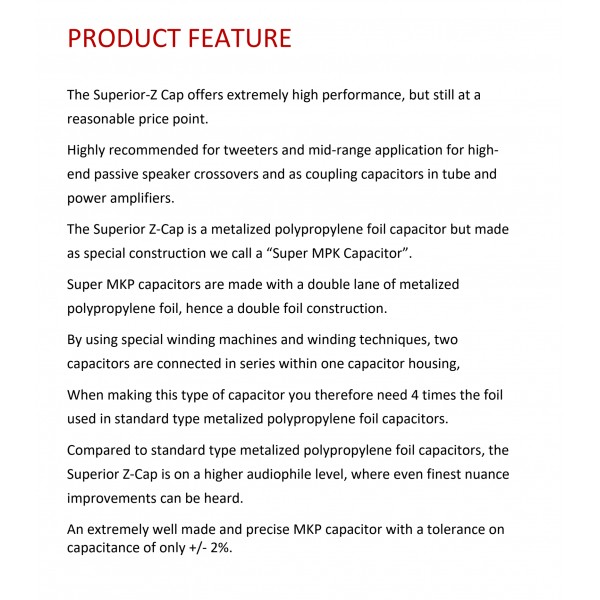

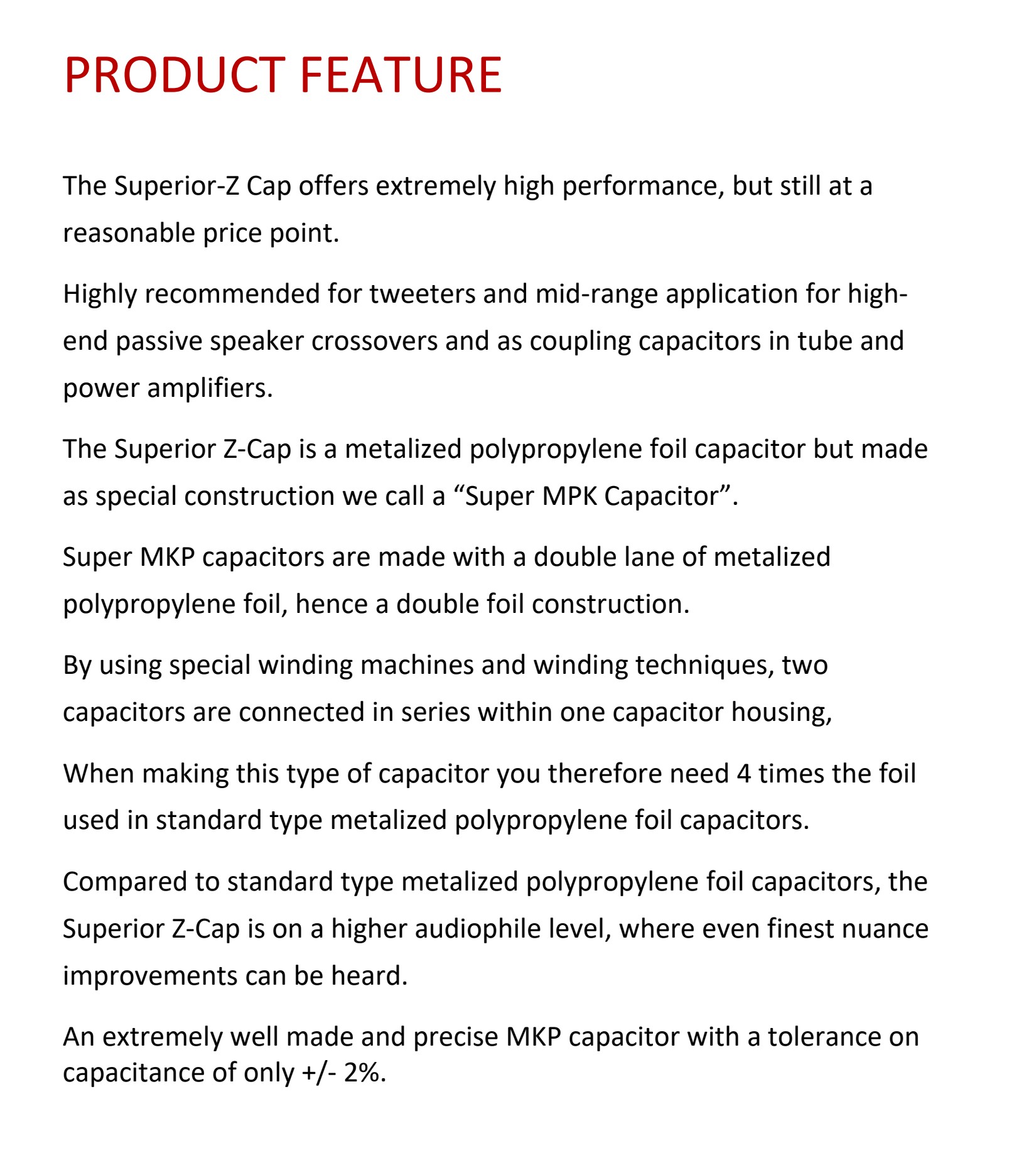

PRODUCT FEATURE

The Superior-Z Cap offers extremely high performance, but still at a reasonable price point.Highly recommended for tweeters and mid-range application for high-end passive speakers and as coupling capacitors in tube and power amplifiers.The Superior Z-Cap is a metalized polypropylene foil capacitor but made as special construction we call a “Super Cap”.A “Super cap” is made with a special double lane metalized polypropylene foil and using special winding machines and techniques, two capacitors are connected in series within one capacitor housing.When making a “Super Cap” you therefore need 4 times the foil used in standard type metalized polypropylene foil capacitors.Compared to standard type metalized polypropylene foil capacitors, the Superior Z-Cap is on a higher audiophile level, where even finest nuance improvements can be heard.Nitrogen filled instead of dielectric fluid, which means having more foil per capacitor and eliminating risk of evaporation.An extremely well made and precise MKP capacitor with a tolerance on capacitance of only +/- 2%.



SUPERIOR Z-CAP

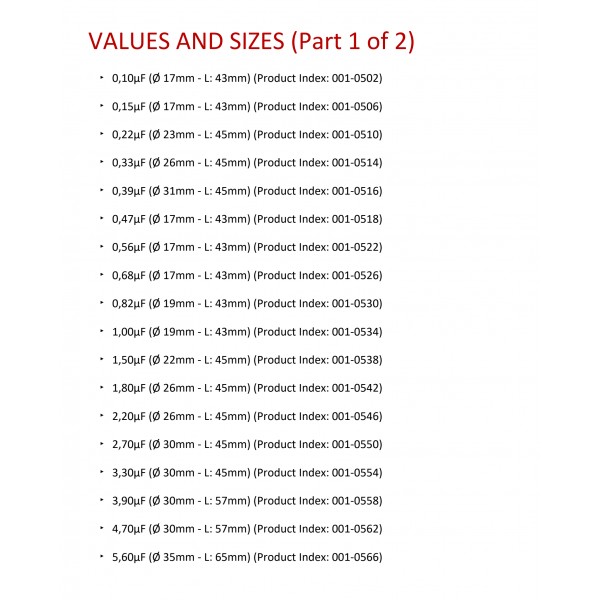

uF  VDC  Dia.     Hor.    Price/Ea.
     mm     mm         (THB)
0.10    1,200      17 43 450*Instock
0.15    1,200      17 43 470*4week
0.22    1,200      23 45 500*Instock
0.33    1,200      26 45 520*Instock
0.39    1,200      31 45 540*4week
0.47       800      17 43 540*Instock
0.56       800      17 43 560*Instock
0.68       800      17 43 580*Instock
0.82       800      19 43 600*4week
1.00       800      19 43 610*Instock
1.50       800      22 45 710*Instock
1.80       800      26 45 750*4week
2.20       800      26 45 790*Instock
2.70       800      30 45 910*Instock
3.30       800      30 45 950*Instock
3.90       800      30 57 1,090*Instock
4.70       800      30 57 1,130*Instock
5.60       800      35 65 1,350*Instock
6.80       800      35 65 1,450*Instock
8.20       800      35 70 1,730*4week
10.00       800      46 70 2,220*4week
12.00       800      46 70 2,400*4week
15.00       800      52 70 2,600*4week
18.00       800      52 70 3,300*4week
22.00       800      52 70 4,100*Instock

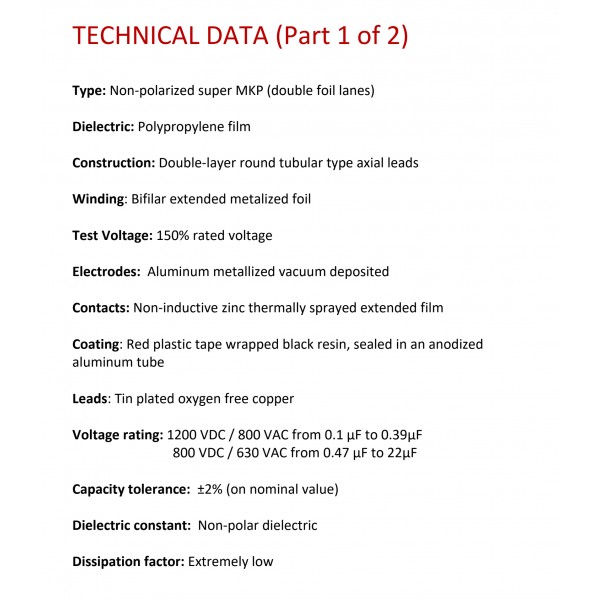

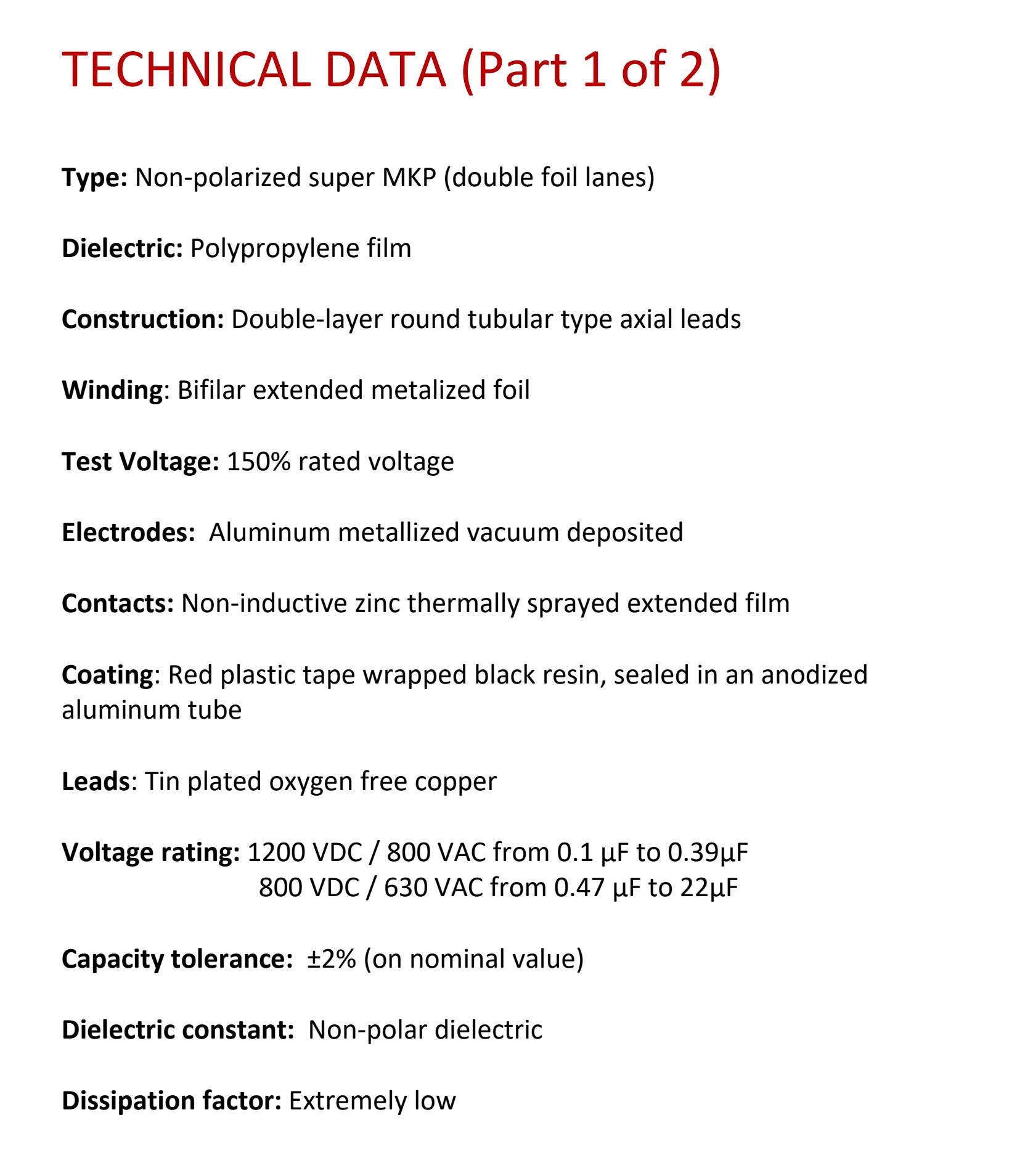

TECHNICAL DATA

Type: Non-polarized super MKP (double foil lanes)

Dielectric: Polypropylene film

Construction: Double-layer round tubular type axial leads

Winding: Bifilar extended metalized foil

Rated Voltage:

1200 VDC / 800 VAC

800 VDC / 630 VAC

Test Voltage: 150% rated voltage

Electrodes: Aluminum metallized vacuum deposited

Contacts: Non-inductive zinc thermally sprayed extended film

Coating: Red plastic tape wrapped black resin, sealed in an anodized aluminum tube

Leads: Tin plated oxygen free copper

Capacitance Range: 1200VDC from 0.1 μF to 0.39μF  800VDC from 0.47 μF to 22μF

Capacitance tolerance: ±2% (on nominal value)

Dielectric constant: Non-polar dielectric

Dissipation factor: Extremely low

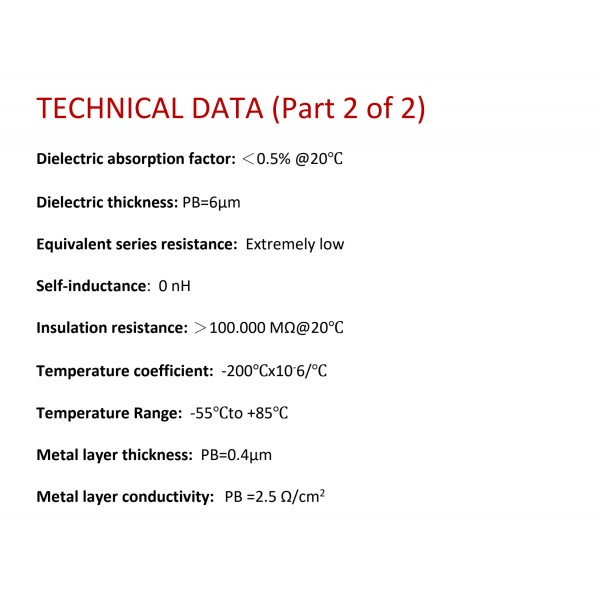

Dielectric absorption factor: ＜0.5% @20℃

Dielectric thickness: PB=6µm

Equivalent series resistance: Extremely low

 Self-inductance: 0 nH

Insulation resistance: ＞100.000 MΩ@20℃

 Temperature coefficient: -200℃x10-6/℃

Temperature Range: -55℃to +85℃

Metal layer thickness: PB=0.4µm

Metal layer conductivity:  PB =2.5 Ω/cm2
