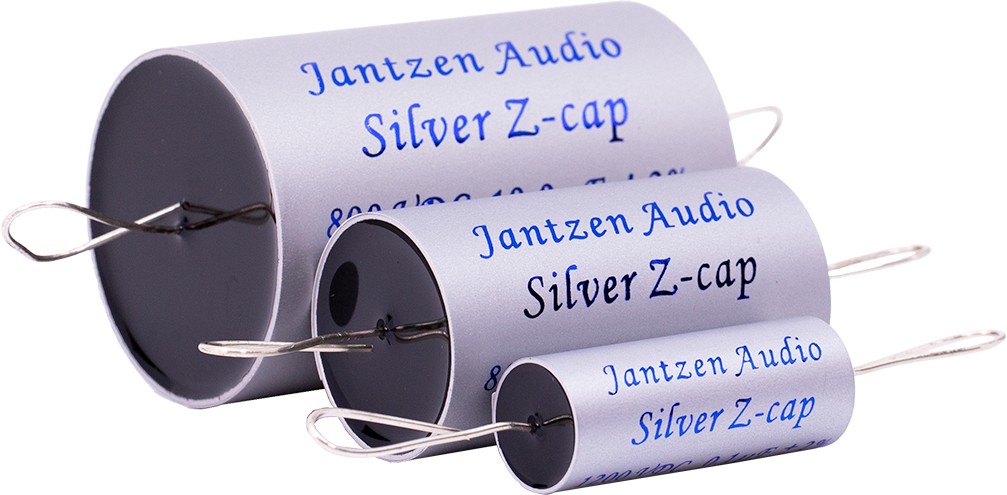

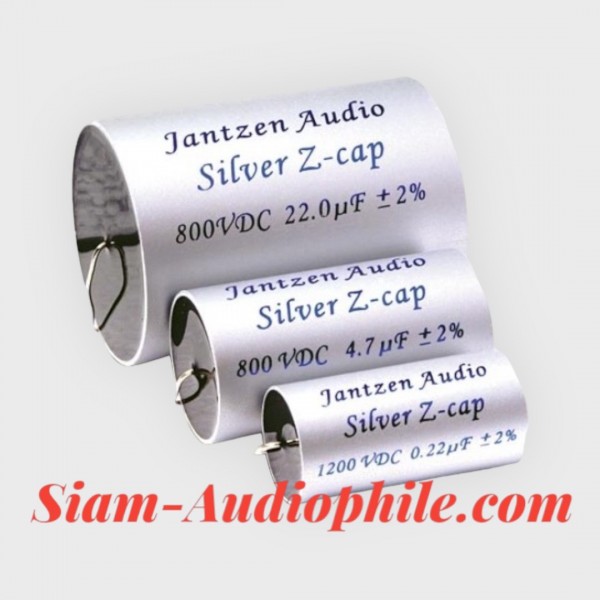

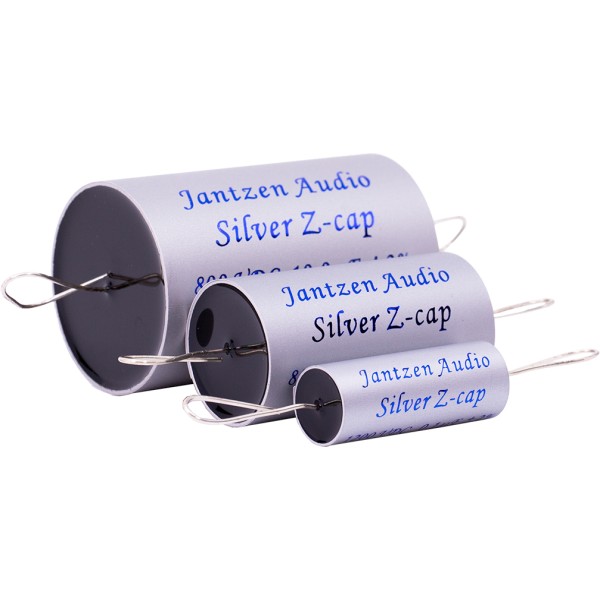

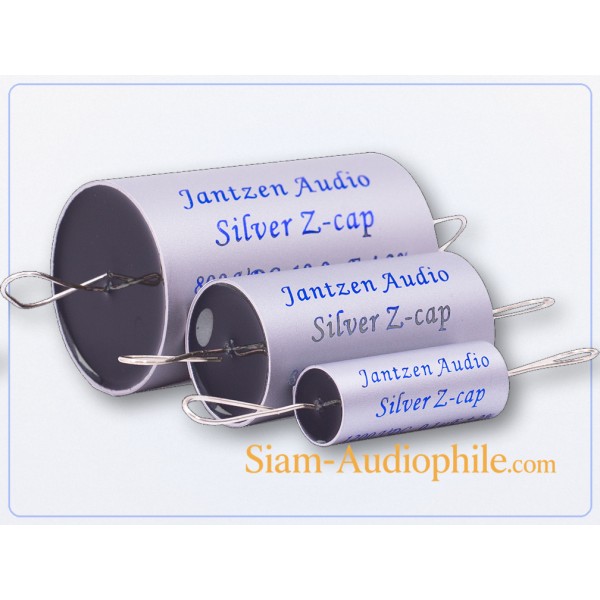

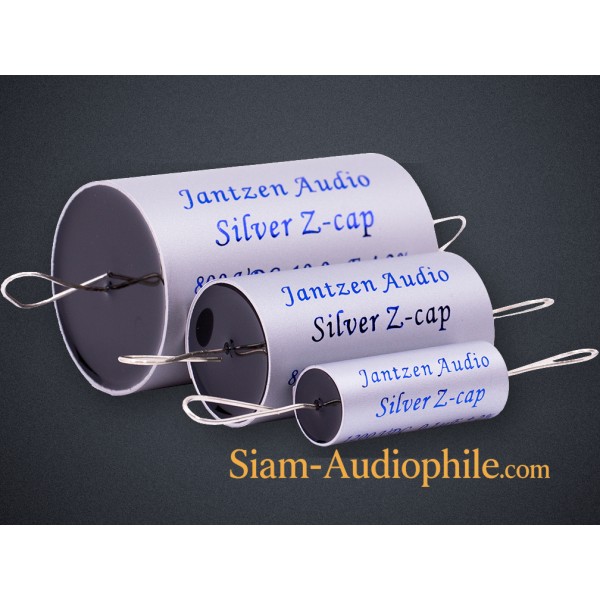

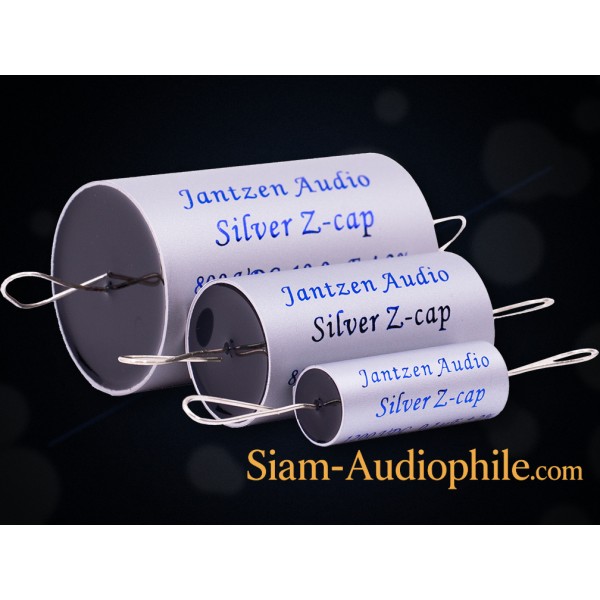

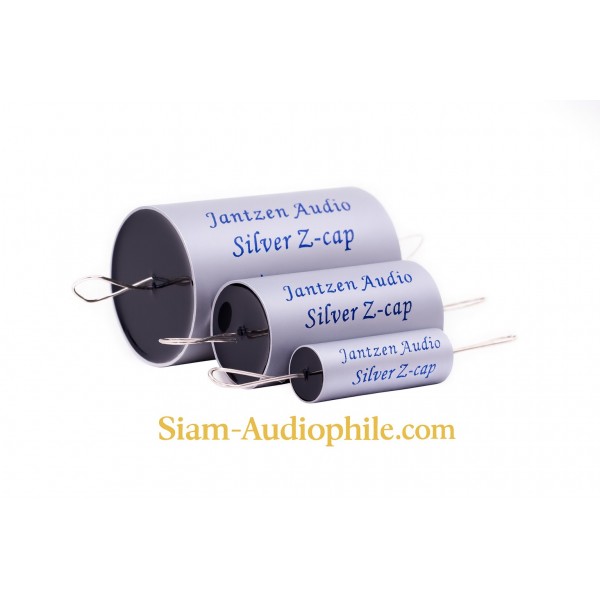

Jantzen Silver Z-cap






SILVER Z-CAP
Metalized polypropylene foil super-capacitor

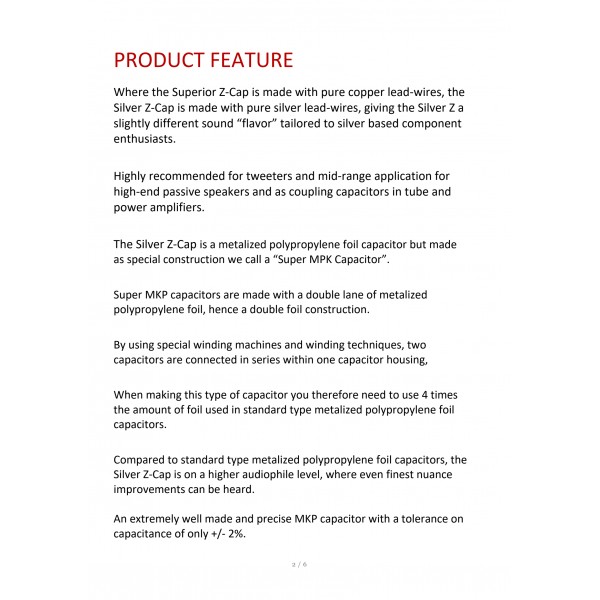

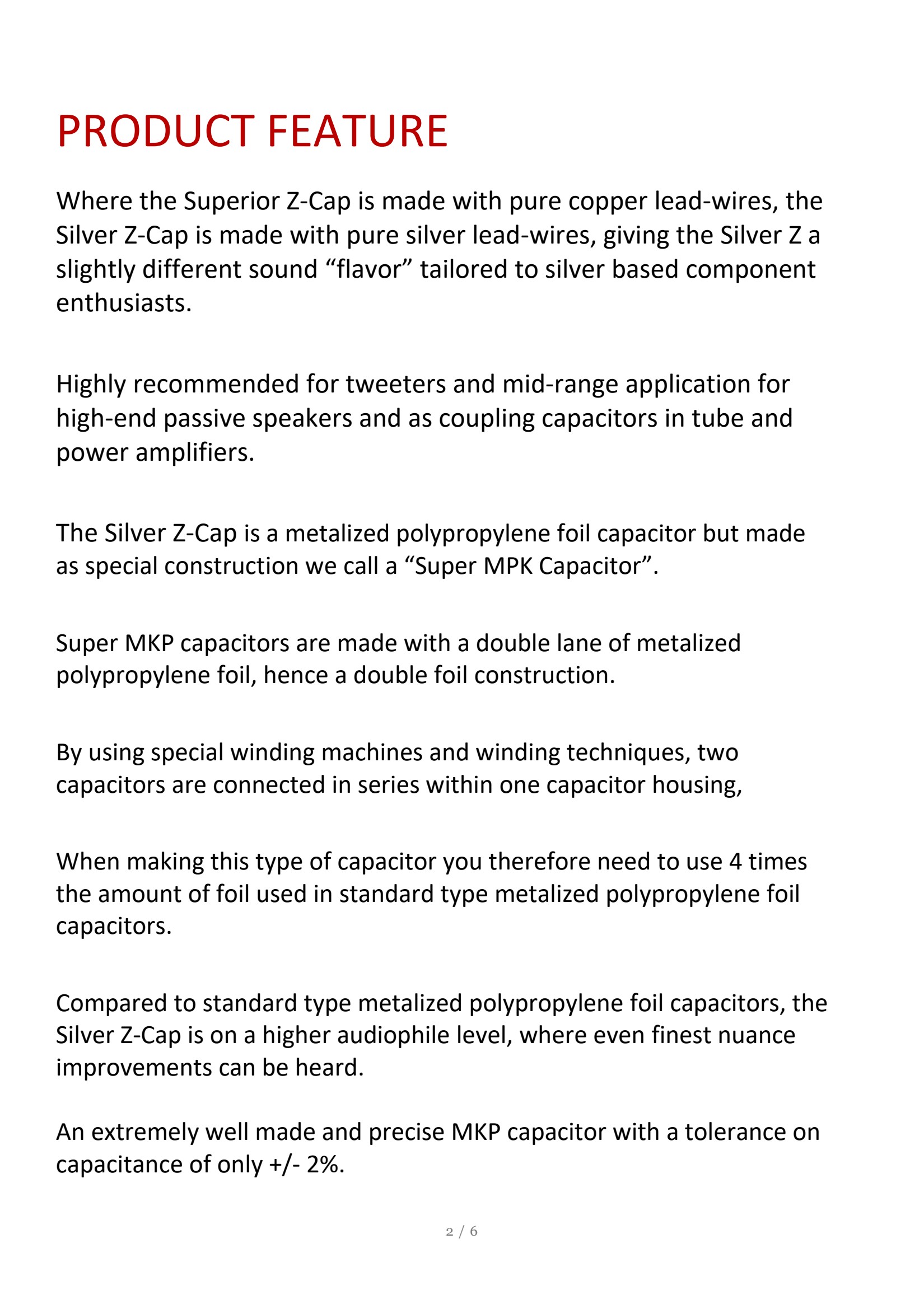

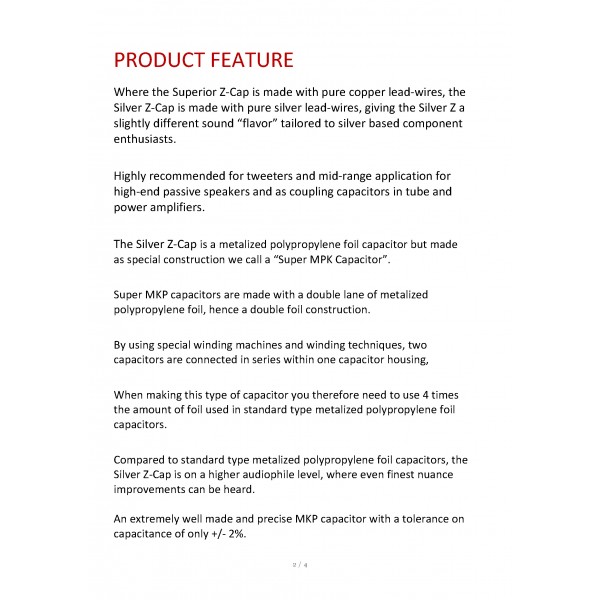

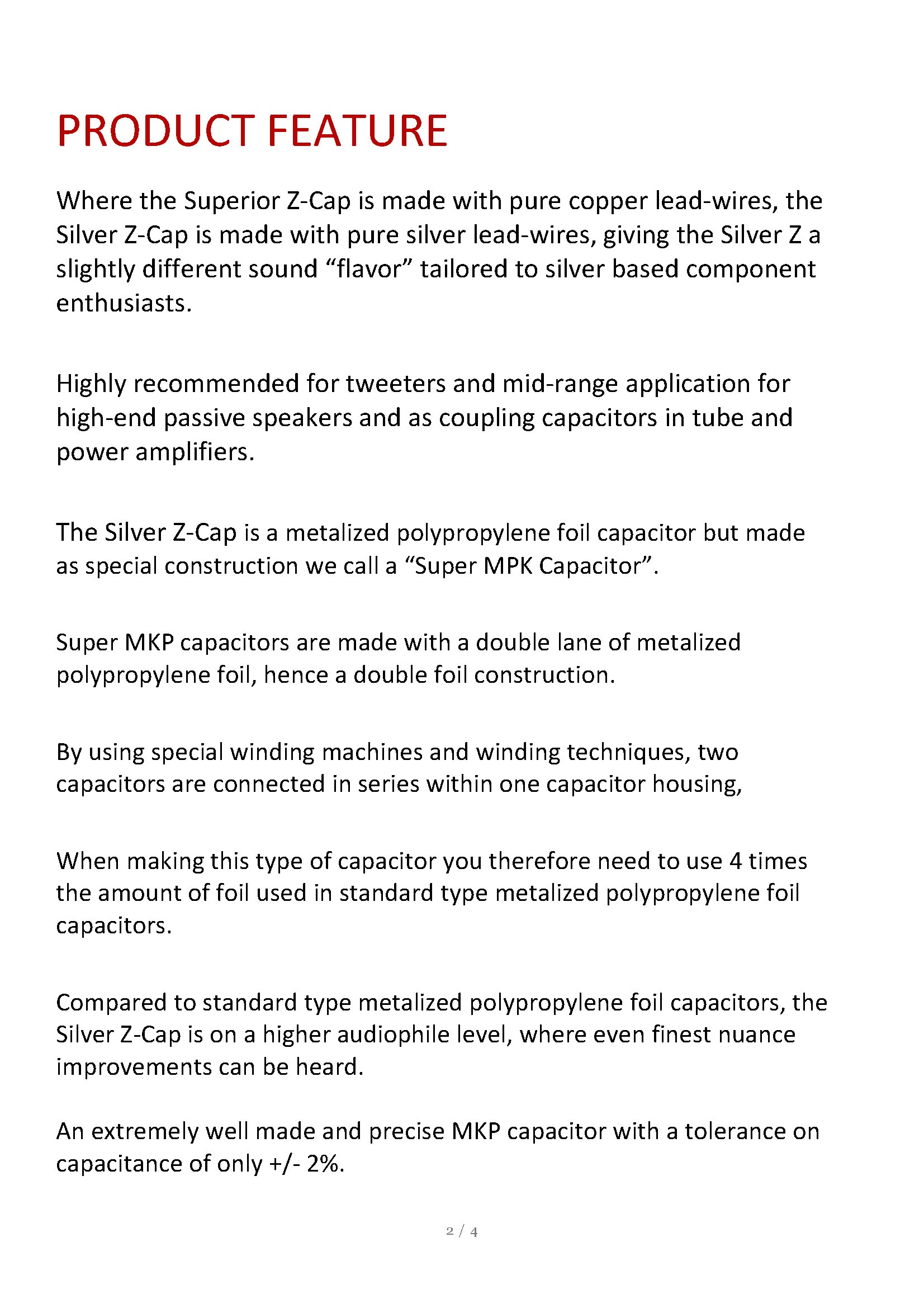

PRODUCT FEATURE

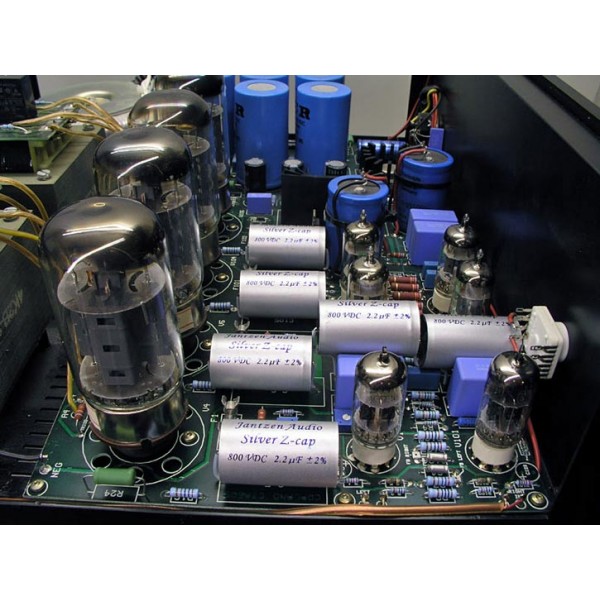

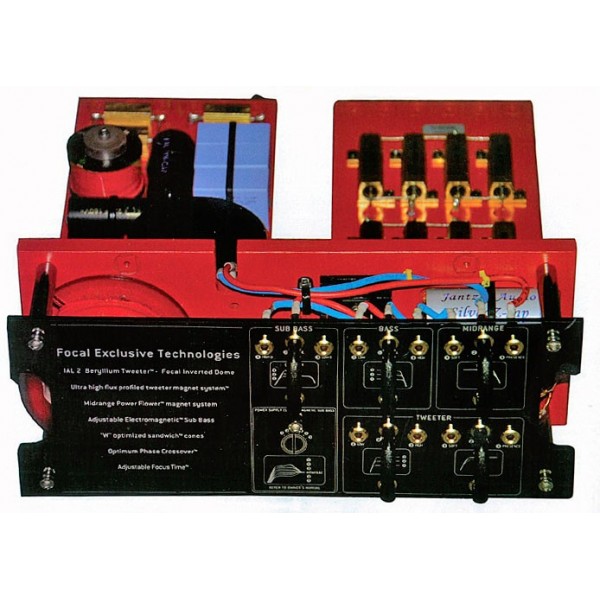

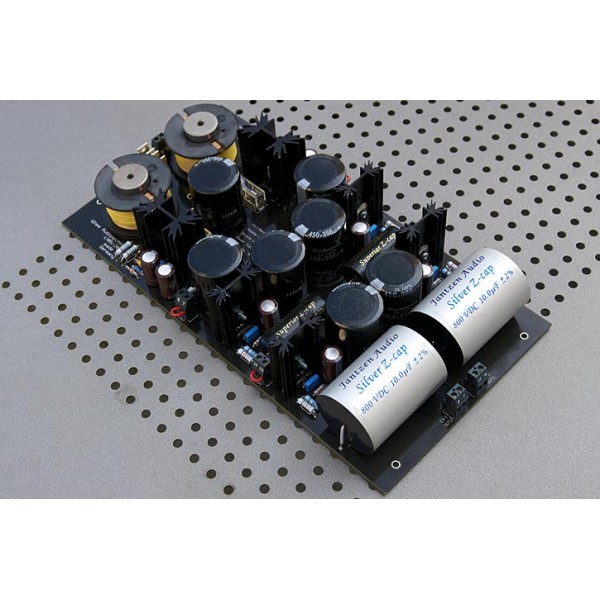

The Silver-Z Cap offers extremely high performance, but still at a reasonable price point.Highly recommended for tweeters and mid-range application for high-end passive speakers and as coupling capacitors in tube and power amplifiers.The Silver Z-Cap is a metalized polypropylene foil capacitor but made as special construction we call a “Super Cap”.A “Super cap” is made with a special double laned metalized polypropylene foil and using special winding machines and techniques, two capacitors are connected in series within one capacitor housing.When making a “Super Cap” you therefore need 4 times the foil used in standard type metalized polypropylene foil capacitors.Compared to standard type metalized polypropylene foil capacitors, the Silver Z-Cap is on a higher audiophile level, where even finest nuance improvements can be heard.Nitrogen filled instead of dielectric fluid, which means having more foil per capacitor and eliminating risk of evaporation.An extremely well made and precise MKP capacitor with a tolerance on capacitance of only +/- 2%.

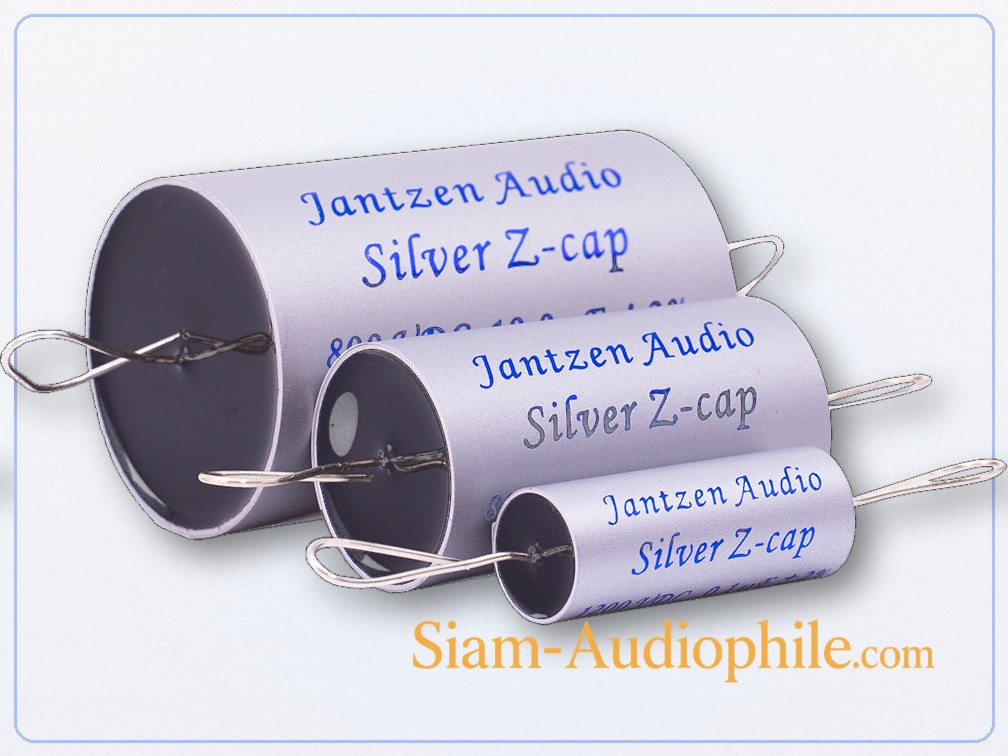

Silver-Z Cap

uF	VDC	Dia.	Hor.	Price /pc.
uF	VDC	mm	mm	THB
0.10	1,200	17	43	*750instock**
0.15	1,200	17	43	*7604week**
0.22	1,200	23	45	*7904week**
0.33	1,200	26	45	*8404week**
0.39	1,200	31	45	*8504week**
0.47	800	17	43	860*4week
0.56	800	17	43	880*Instock
0.68	800	17	43	900*4week
0.82	800	19	43	*9204week**
1.00	800	19	43	*930instock**
1.50	800	22	45	1,030*4week
1.80	800	26	45	*1,0704week**
2.20	800	26	45	1,100*Instock
2.70	800	30	45	*1,240Instock**
3.30	800	30	45	*1,280Instock**
3.90	800	30	57	*1,420Instock**
4.70	800	30	57	*1,460Instock**
5.60	800	35	65	1,670*Instock
6.80	800	35	65	*1,740Instock**
8.20	800	35	70	*2,000Instock**
10.00	800	46	70	2,530*Instock
12.00	800	46	70	2,780*Instock
15.00	800	52	70	*2,9004week**
18.00	800	52	70	*3,9004week**
22.00	800	52	70	*4,500Instock**

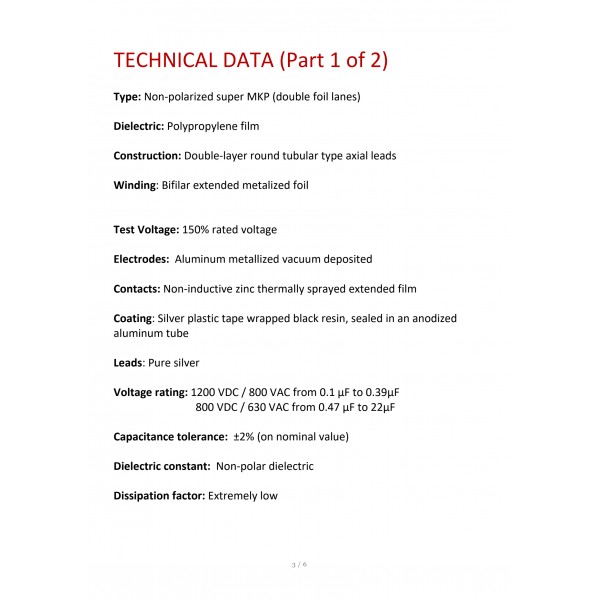

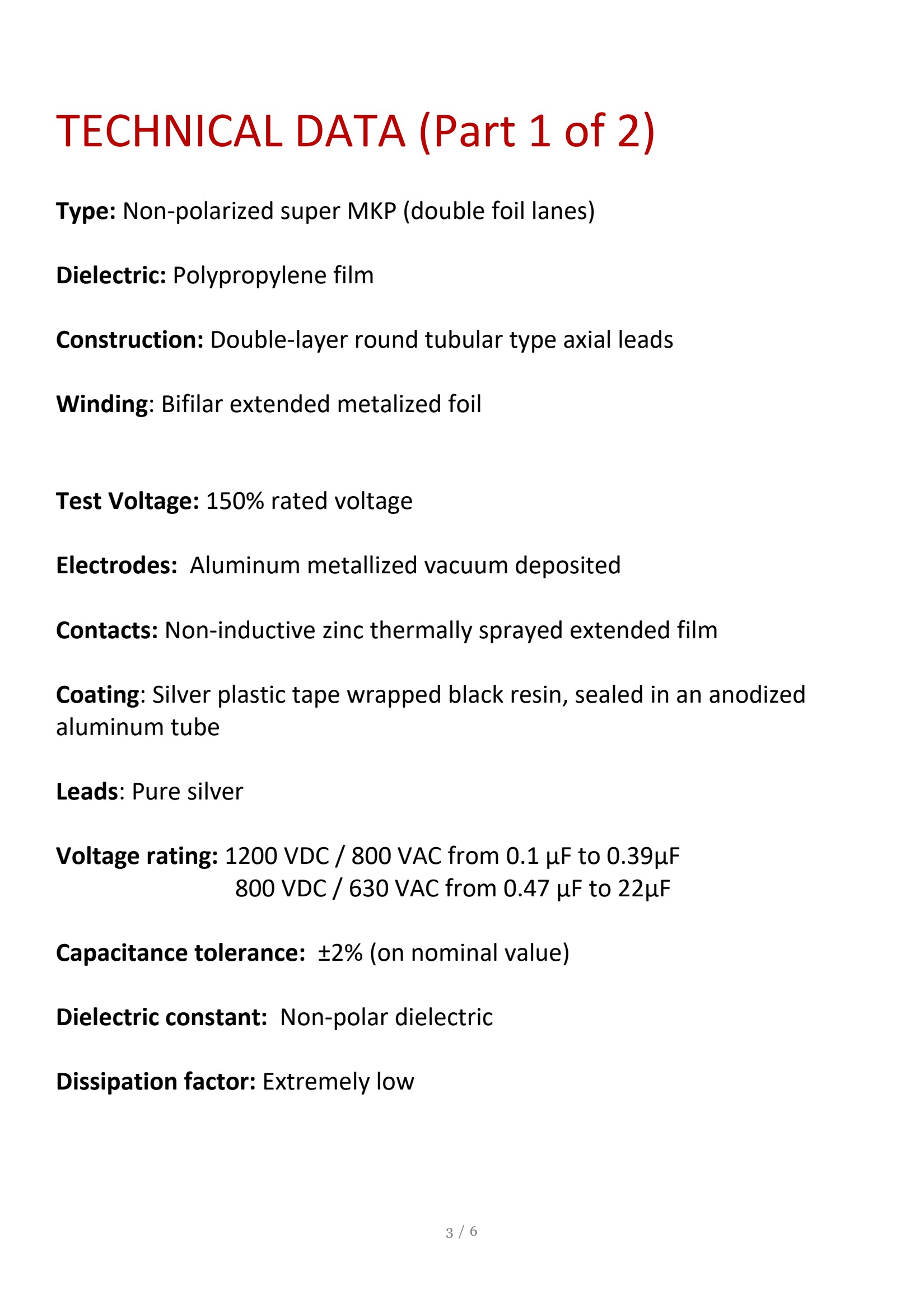

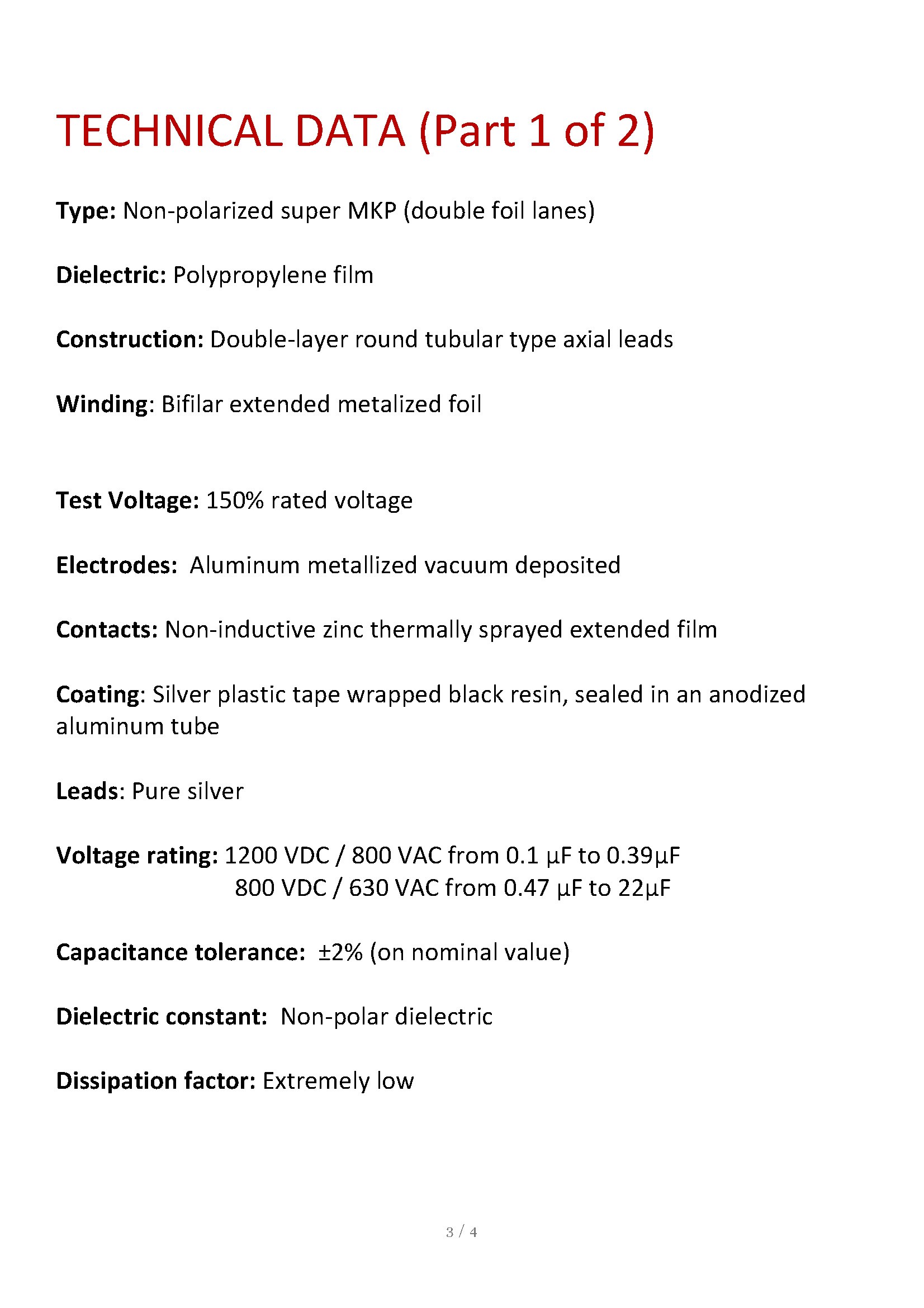

TECHNICAL DATA

Type: Non-polarized super MKP (double foil lanes)

Dielectric: Polypropylene film

Construction: Double-layer round tubular type axial leads

Winding: Bifilar extended metalized foil

Rated Voltage:

1200 VDC / 800 VAC

800 VDC / 630 VAC

Test Voltage: 150% rated voltage

Electrodes: Aluminum metallized vacuum deposited

Contacts: Non-inductive zinc thermally sprayed extended film

Coating: Silver plastic tape wrapped black resin, sealed in an anodized aluminum tube

Leads: Pure silver

Capacitance Range:

1200VDC from 0.1 μF to 0.39μF

800VDC from 0.47 μF to 22μF

Capacitance tolerance: ±2% (on nominal value)

Dielectric constant: Non-polar dielectric

Dissipation factor: Extremely low

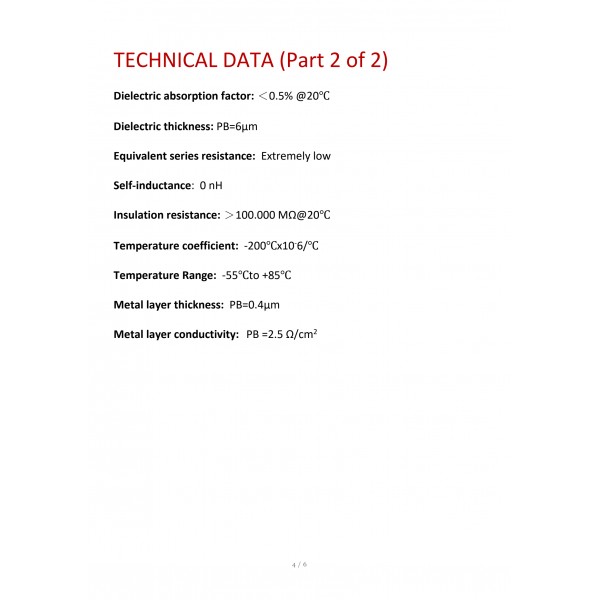

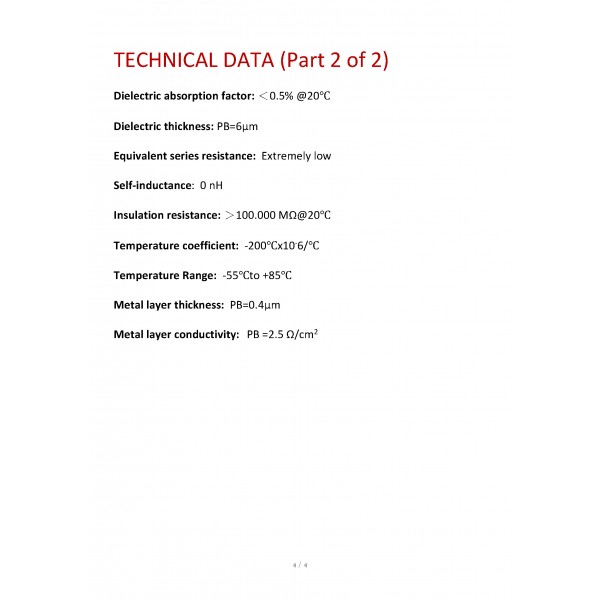

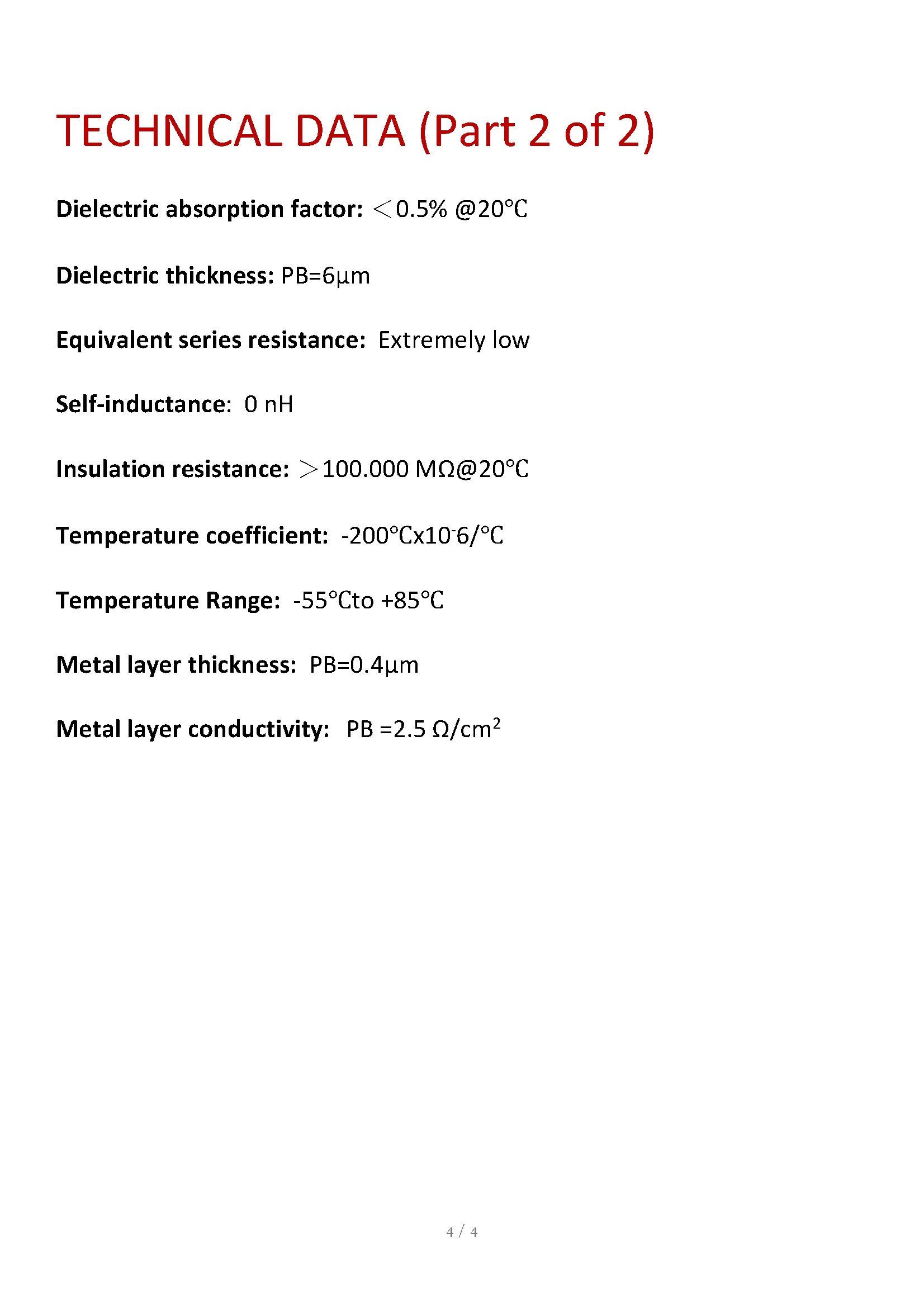

Dielectric absorption factor: ＜0.5% @20℃

Dielectric thickness: PB=6µm

Equivalent series resistance: Extremely low

Self-inductance: 0 nH

Insulation resistance: ＞100.000 MΩ@20℃

Temperature coefficient: -200℃x10^-6/℃

Temperature Range: -55℃to +85℃

Metal layer thickness: PB=0.4µm

Metal layer conductivity: PB =2.5 Ω/cm²
