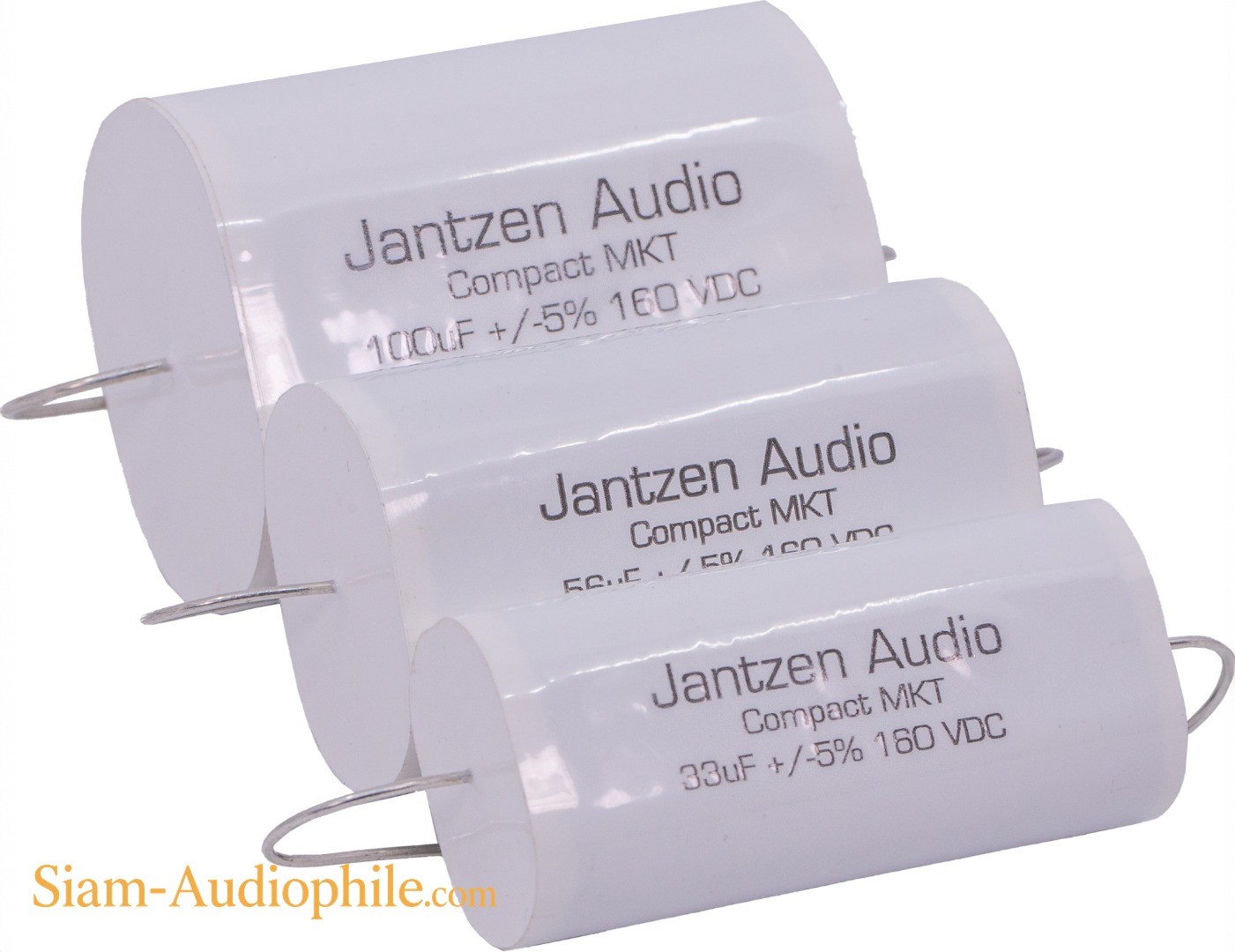

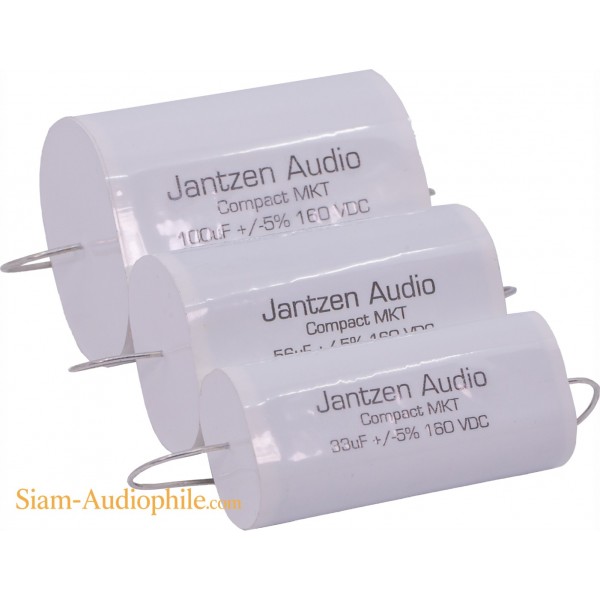

Jantzen Compact MKT
Compact MKT
Metalized polyester film capacitor

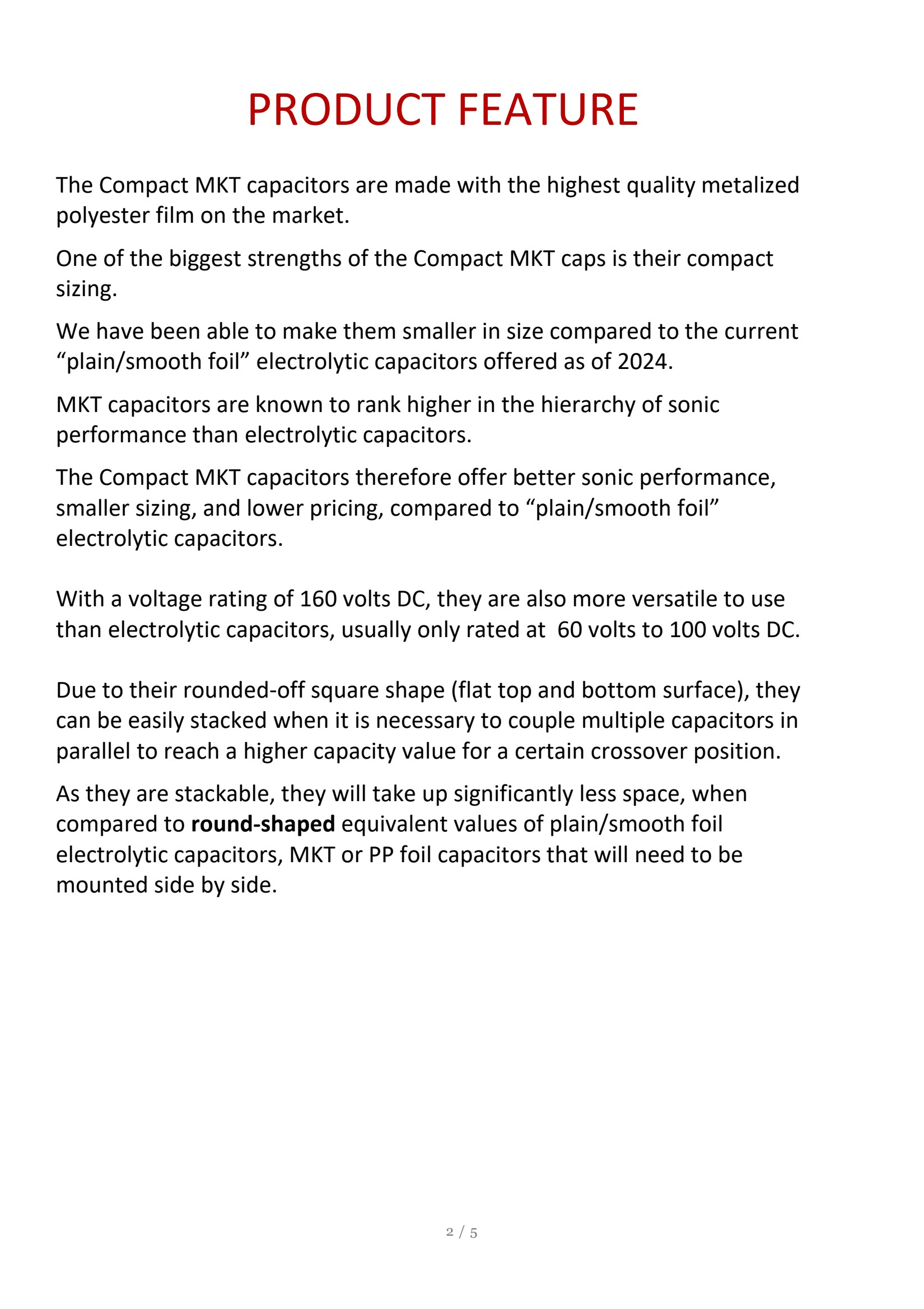

PRODUCT FEATURE
© The Compact MKT capacitors are made with the highest quality metalized polyester film on the market.
© One of the biggest strengths of the Compact MKT caps is their compact sizing.
© The Compact MKT capacitors therefore offer better sonic performance, smaller sizing, and lower pricing, compared to “plain/smooth foil” electrolytic capacitors.
© MKT capacitors are known to rank higher in the hierarchy of sonic performance than electrolytic capacitors.
© With a voltage rating of 160 volts DC, they are also more versatile to use than electrolytic capacitors, usually only rated at 60 volts to 100 volts DC.
© Due to their rounded-off square shape (flat top and bottom surface), they can be easily stacked when it is necessary to couple multiple capacitors in parallel to reach a higher capacity value for a certain crossover position.
© As they are stackable, they will take up significantly less space, when compared to round-shaped equivalent values of plain/smooth foil electrolytic capacitors, MKT or PP foil capacitors that will need to be mounted side by side.

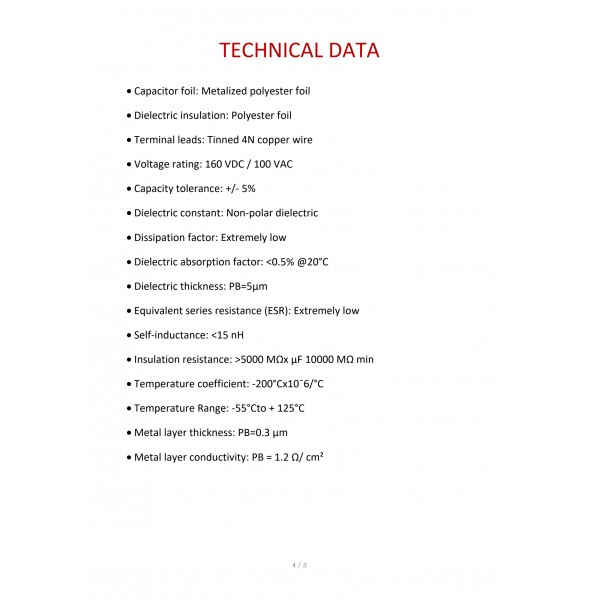

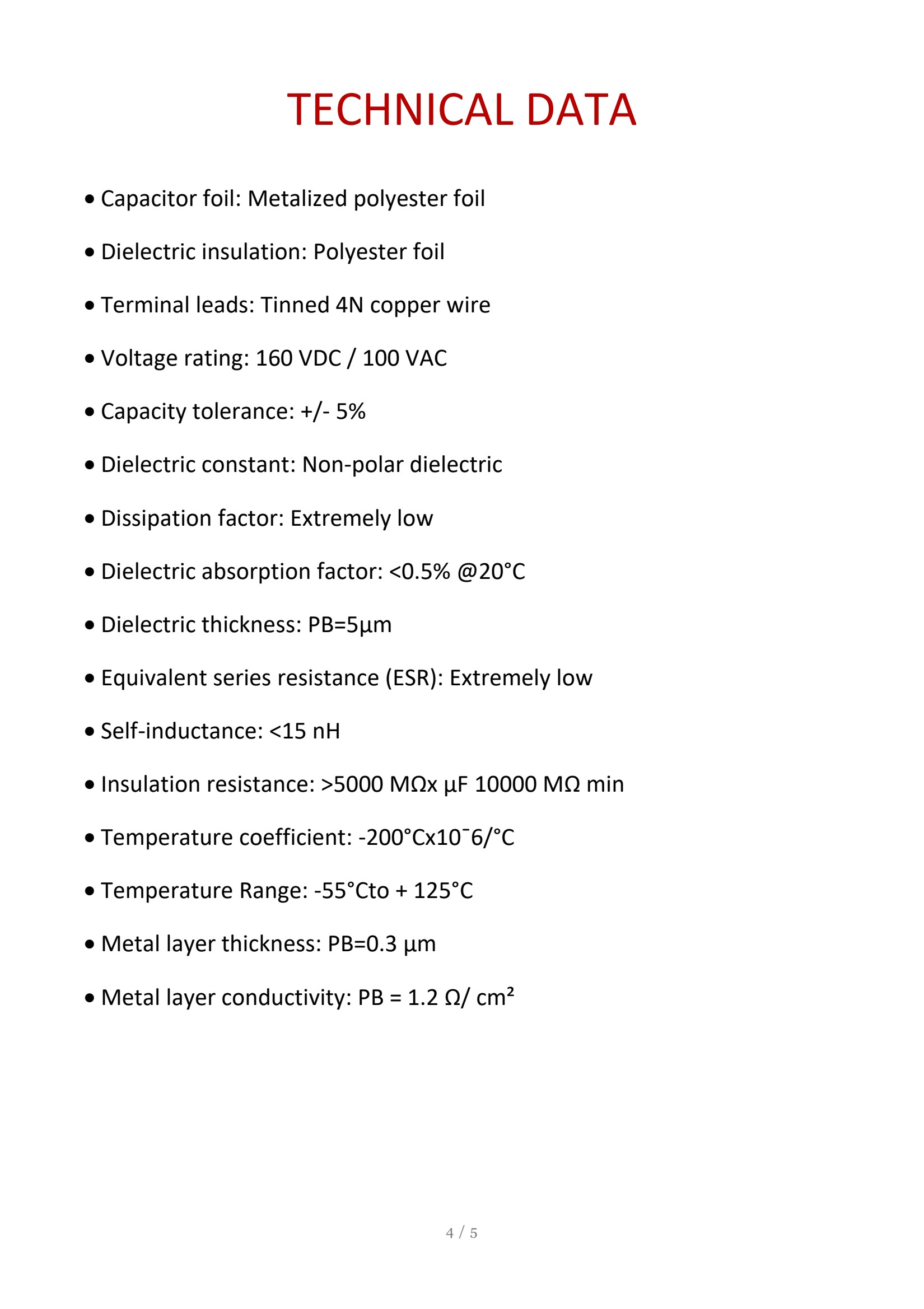

TECHNICAL DATA
| Capacitor foil: | Metalized polyester foil |
| Dielectric insulation: | Polyester foil |
| Terminal leads: | Tinned 4N copper wire |
| Voltage rating: | 160 VDC / 100 VAC |
| Capacitance tolerance: | +/- 5% |
| Dielectric constant: | Non-polar dielectric |
| Dissipation factor: | Extremely low |
| Dielectric absorption factor: | <0.5% @20°C |
| Dielectric thickness: | PB=5µm |
| Equivalent series resistance (ESR): | Extremely low |
| Self-inductance: | <15 nH |
| Insulation resistance: | >5000 MΩx µF 10000 MΩ min |
| Temperature coefficient: | -200°Cx10¯6/°C |
| Temperature Range: | -55°Cto + 125°C |
| Metal layer thickness: | PB=0.3 µm |
| Metal layer conductivity: | PB = 1.2 Ω/ cm² |
ราคา Jantzen Compact MKT
160VDC 5% MKT (ปรับราคา ม.ค.2569)

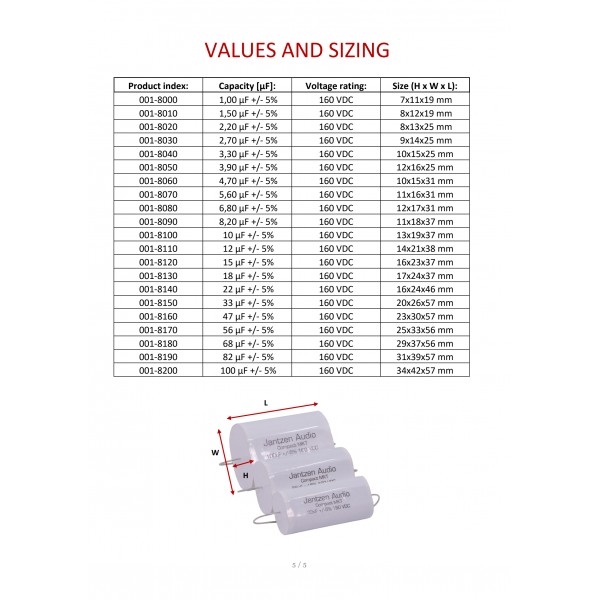

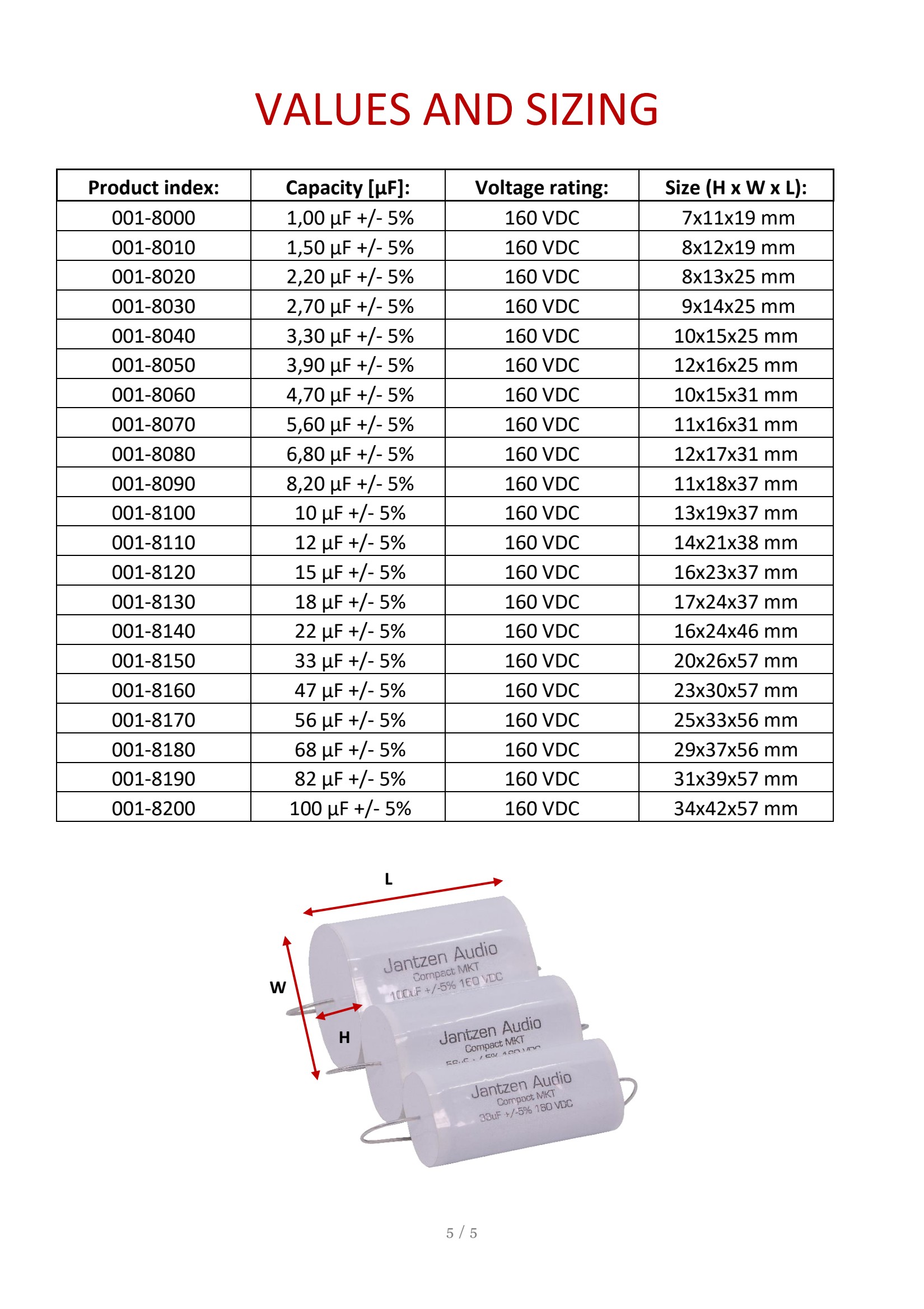

| Capacity [µF] | Dia [mm] | Length. (mm.) | ราคา/ตัว (บาท) |
| 1.00 | 7x11 | 19 | 50 |
| 1.50 | 8x12 | 19 | 60 |
| 2.20 | 8x13 | 25 | 75 |
| 2.70 | 9x14 | 25 | 75 |
| 3.30 | 10x15 | 25 | 80 |
| 3.90 | 12x16 | 25 | 85 |
| 4.70 | 10x15 | 31 | 100 |
| 5.60 | 13x17 | 31 | 110 |
| 6.80 | 12x17 | 31 | 120 |
| 8.20 | 11x18 | 37 | 135 |
| 10.00 | 13x19 | 37 | 150 |
| 12.00 | 14x21 | 38 | 185 |
| 15.00 | 16x23 | 37 | 210 |
| 18.00 | 17x24 | 37 | 250 |
| 22.00 | 16x24 | 46 | 330 |
| 33.00 | 21x28 | 57 | 490 |
| 47.00 | 26x33 | 57 | 630 |
| 56.00 | 25x33 | 56 | 770 |
| 68.00 | 29x37 | 56 | 930 |
| 82.00 | 31x39 | 57 | 1,050 |
| 100.00 | 36x44 | 57 | 1,280 |
ท่านสามารถสั่งซื้อสินค้าได้ที่ช่องทาง
TEL. 089 515 5788
Line ID : siamaudiophile
