Jantzen Wire Coil 15AWG

รายละเอียดและราคา

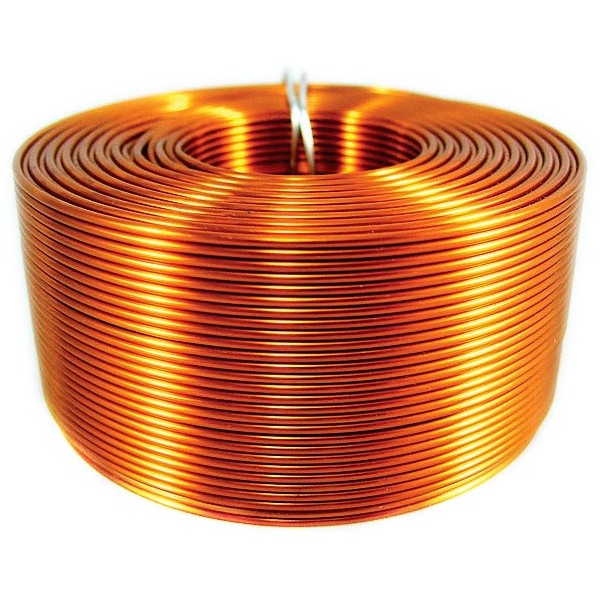

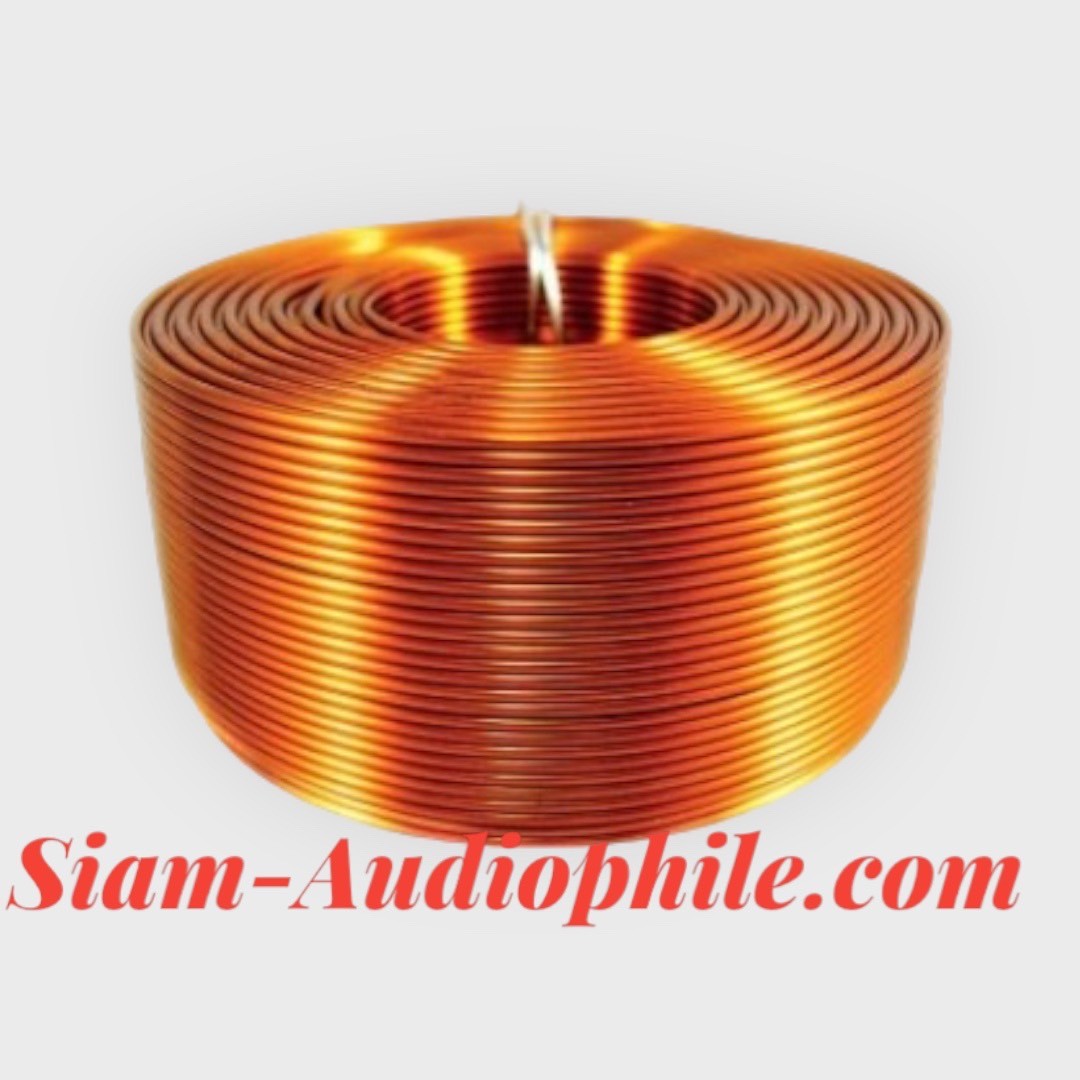

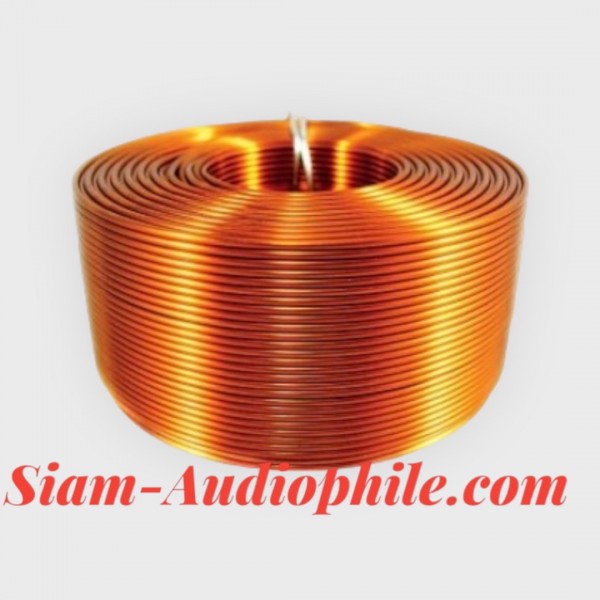

Jantzen Wire Coil 15AWG

High-purity copper wire, “baked” into a perfect shape to create a distortion-free inductor, for all audio applications.

Modern self-supporting design with no need for plastic bobbins.

Low inductance tolerance of +/-3% and power handling depending on the wire used, makes it the most versatile coil on the market.

Jantzen Inductor - Wire Coil 15 AWG

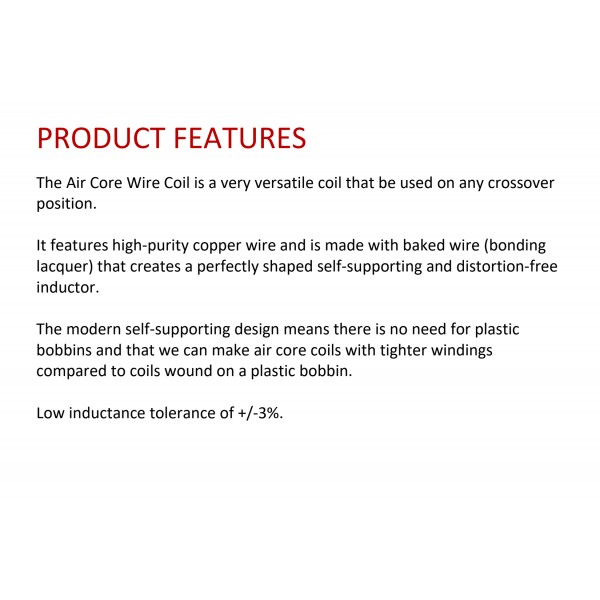

...PRODUCT FEATURES...

High-purity copper wire, “baked” into a perfect shape to create a distortion-free inductor, for all audio applications.Modern self-supporting design with no need for plastic bobbins.Low inductance tolerance of +/-3% and power handling depending on the wire used, makes it the most versatile coil on the market.

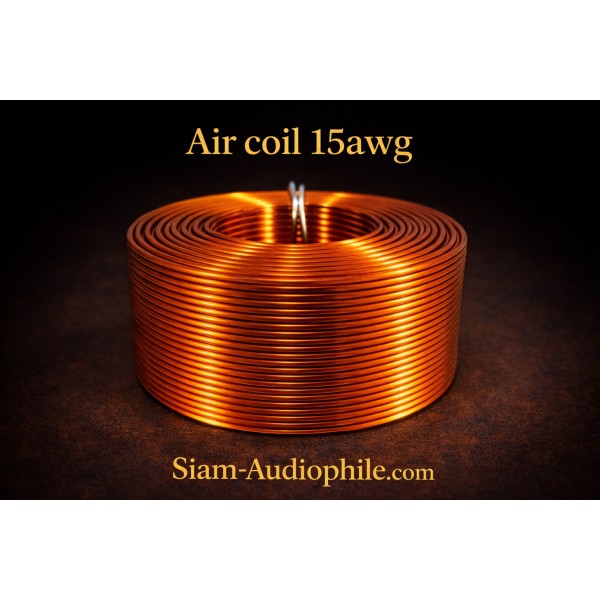

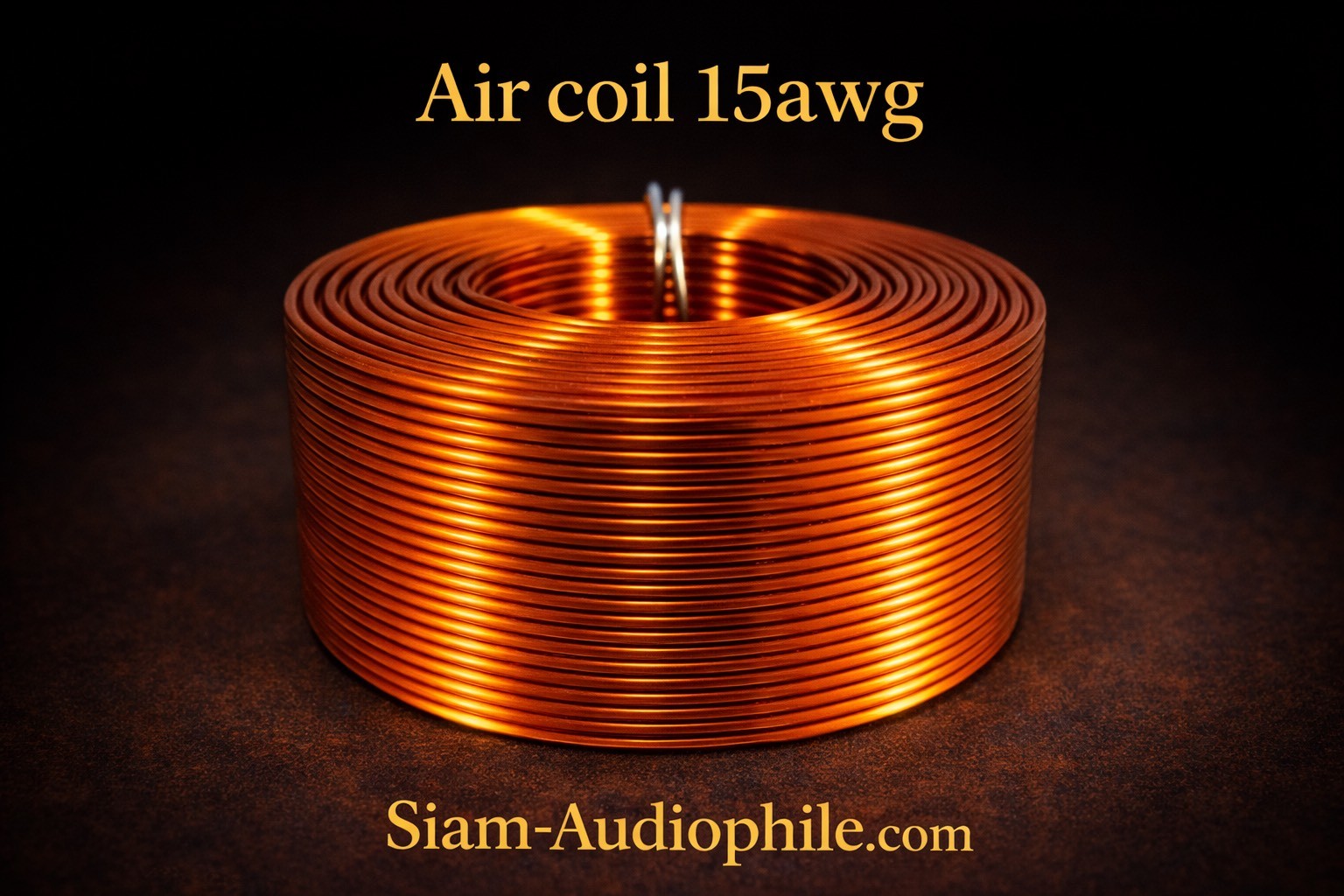

Jantzen Inductor Wire Coil 15AWG (wire dia 1.4mm)

[mH]	DCR [Ω]	Wind.Wire [mm]	Innerø [mm]	Outerø [mm]	Height [mm]	Price/Ea. (THB)
0.010	0.025	1.40	8	17	25	*300 4week**
0.025	0.035	1.40	25	36	15	*340 4week**
0.050	0.050	1.40	25	40	15	*3904week**
0.100	0.075	1.40	25	43	15	*3904week**
0.120	0.086	1.40	25	43	15	*3904week**
0.150	0.099	1.40	25	45	15	*430Instock**
0.180	0.105	1.40	25	56	10	*480Instock**
0.185	0.115	1.40	25	50	15	*4804week**
0.200	0.115	1.40	25	48	15	*4904week**
0.220	0.120	1.40	25	50	15	*510Instock**
0.250	0.128	1.40	25	52	15	*5404week**
0.270	0.134	1.40	25	52	15	*560Instock**
0.300	0.144	1.40	25	53	15	*5904week**
0.330	0.153	1.40	25	53	15	*640Instock**
0.360	0.170	1.40	25	44	30	*6704week**
0.390	0.167	1.40	25	56	15	*670Instock**
0.430	0.190	1.40	25	46	30	*7404week**
0.470	0.190	1.40	25	59	15	*740Instock**
0.510	0.204	1.40	25	48	30	*8104week**
0.560	0.220	1.40	25	49	30	*820Instock**
0.620	0.220	1.40	25	49	30	*9004week**
0.680	0.240	1.40	25	49	30	*930Instock**
0.750	0.260	1.40	25	51	30	*9604week**
0.820	0.270	1.40	25	52	30	*1,020Instock**
0.900	0.290	1.40	25	54	30	*1,0904week**
1.000	0.300	1.40	25	54	30	*1,120Instock**
1.200	0.330	1.40	25	57	30	*1,240Instock**
1.400	0.370	1.40	25	59	30	*1,3204week**
1.500	0.380	1.40	25	59	30	*1,330Instok**
1.650	0.410	1.40	25	61	30	*1,4404week**
1.800	0.420	1.40	25	61	30	*1,540Instock**
2.000	0.444	1.40	25	64	30	*1,6104week**
2.200	0.473	1.40	25	64	30	*1,800Instock**
2.700	0.525	1.40	25	69	30	*1,9804week**
3.300	0.615	1.40	25	72	30	*2,0804week**
3.500	0.600	1.40	25	75	30	*2,3604week**
3.900	0.660	1.40	25	74	30	*2,5004week**
4.700	0.760	1.40	25	76	30	*2,7304week**
5.000	0.830	1.40	35	66	60	*3,0504week**
5.600	0.870	1.40	35	69	60	*3,1804week**
6.200	0.930	1.40	35	71	60	*3,4504week**
6.800	0.960	1.40	35	71	60	*3,4604week**
7.800	1.070	1.40	35	72	60	*3,6804week**
8.200	1.100	1.40	35	74	60	*3,7204week**
10.000	1.200	1.40	35	76	60	*4,3204week**
12.000	1.320	1.40	35	79	60	*4,6304week**
20.000	1.850	1.40	35	89	60	*6,1004week**
