Litz Wire Wax Coil 15awg

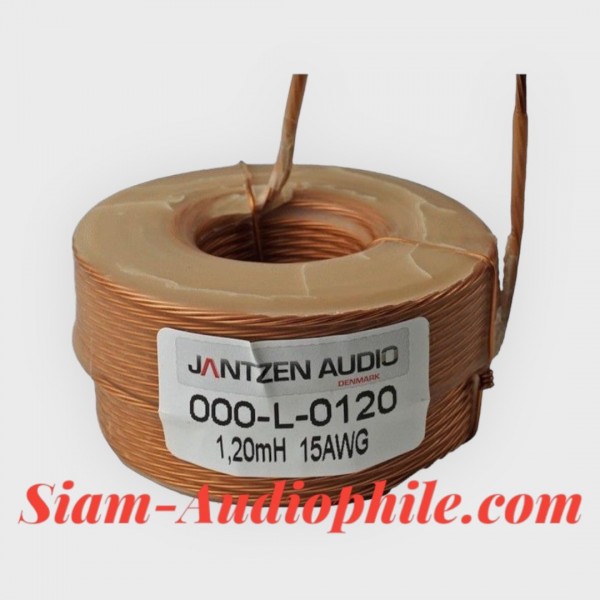

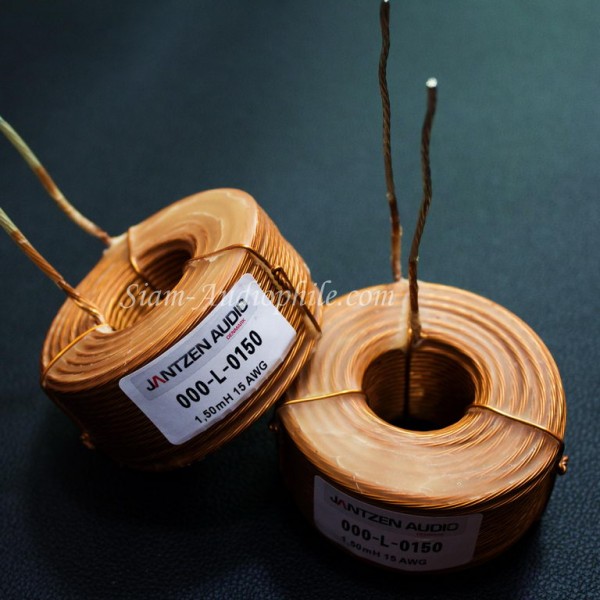

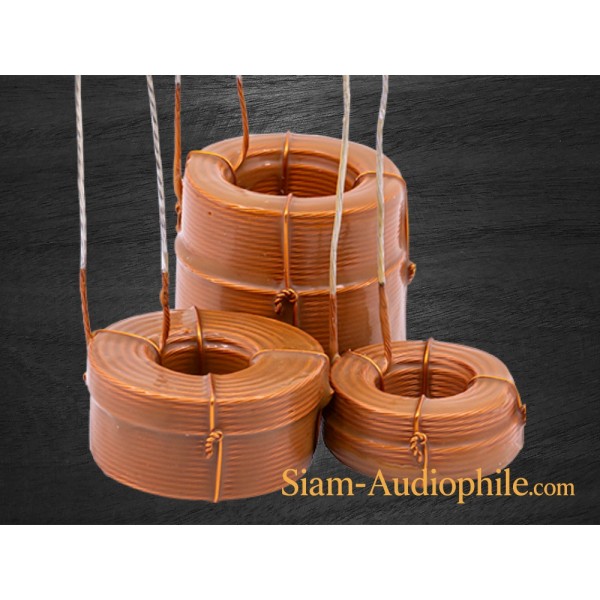

LITZ WIRE WAX COIL
**Litz Wire Wax Coil ขนาด15AWG (ทองแดง0.5mm เกลียว 7เส้น) ทำให้ลด Skin Effect ของตัวเหนี่ยวนำ ได้ใกล้ถึง ความถี่ 1MHz. ซึ่งทำให้ไดนามิกเฮดรูมเพิ่มขึ้น และเสียงที่ชัดเจนขึ้น
**Litz Wire Coils ชุบด้วย Wax คุณภาพสูงชนิดเดียวกับที่ใช้กับ Jantzen Wax Coil ซึ่งทำให้ขดลวดแน่นขึ้นมากและทำให้ขดลวดมีความนิ่งมากขึ้น
**ประโยชน์ที่สำคัญที่สุดของการชุบด้วย Wax คือการกำจัดการสั่นสะเทือนจากขดลวด จึงทำให้ ลบล้าง Microphonic ออกไปทั้งหมด ส่งผลให้เสียงมีความสงัดมากขึ้น
-Made from 4N Grade 1 copper wire.
-15awg 7 strands of 0.5mm wire designed to reduce skin and proximity losses up to frequencies of ~ 1 MHz.
-Wax impregnation eliminates distortion and microphonic effects.
-Offers improved dynamic headroom and a better surface for electron travel (Compared to normal single wire inductors)

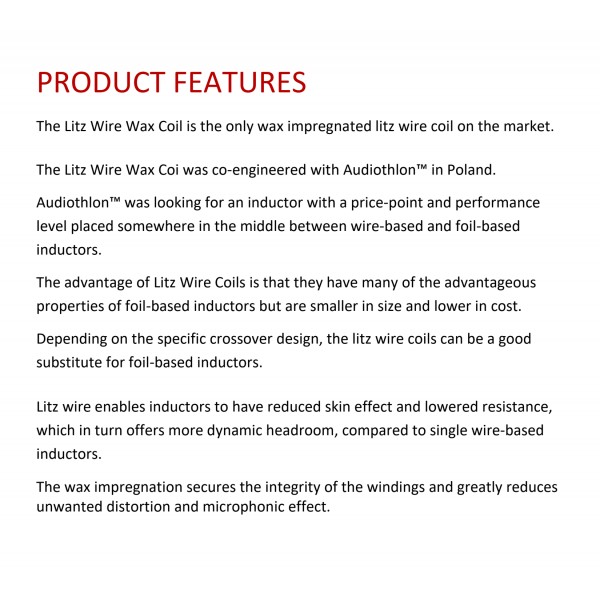

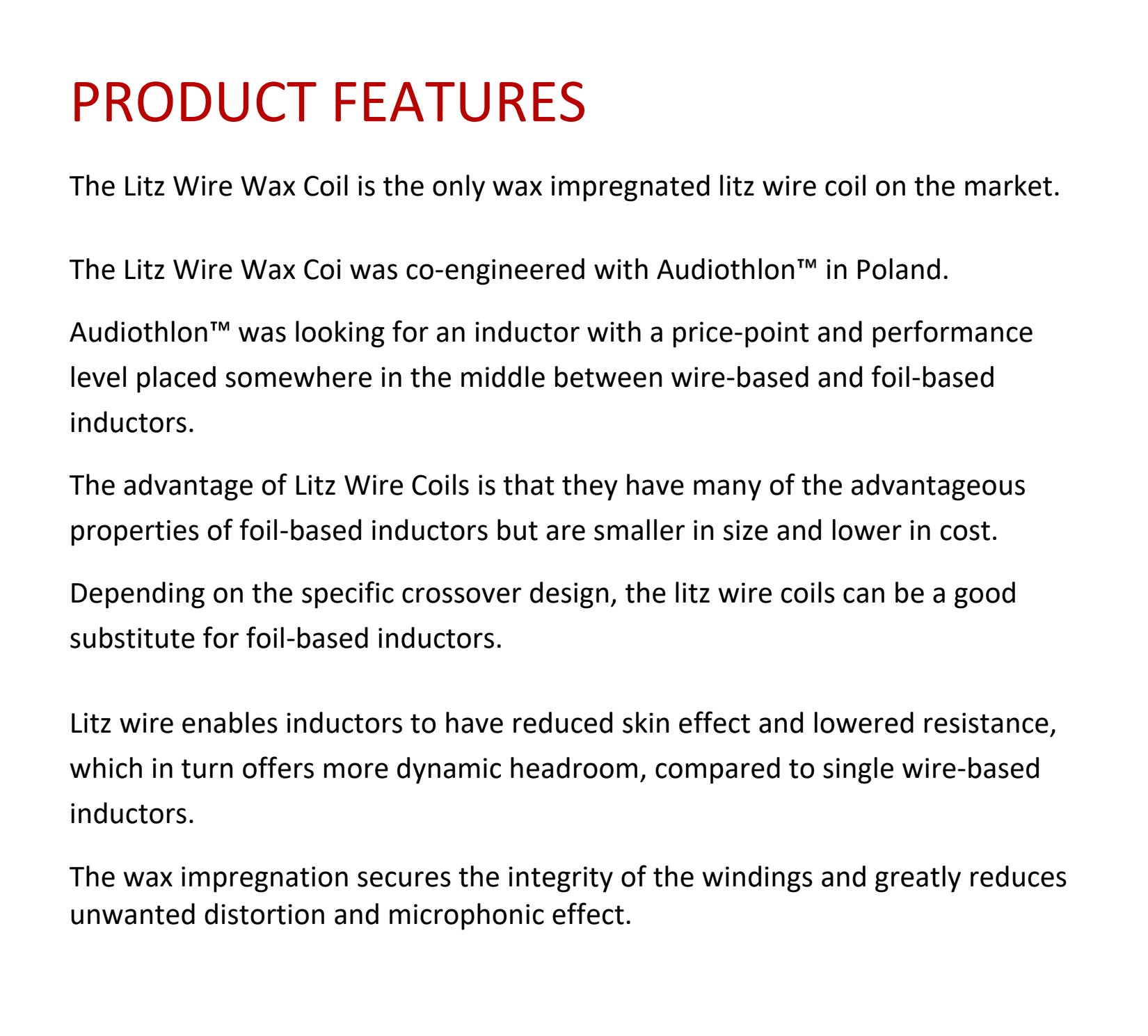

PRODUCT FEATURES
-The Litz Wire Wax Coil is the only wax impregnated litz wire coil on the market.
-The Litz Wire Wax Coi was co-engineered with Audiothlon™ in Poland.
-Audiothlon™ was looking for an inductor with a price-point and performance level placed somewhere in the middle between wire-based and foil-based inductors.
-The advantage of Litz Wire Coils is that they have many of the advantageous properties of foil-based inductors but are smaller in size and lower in cost.
-Depending on the specific crossover design, the litz wire coils can be a good substitute for foil-based inductors.
-Litz wire enables inductors to have reduced skin effect and lowered resistance, which in turn offers more dynamic headroom, compared to single wire-based inductors.
-The wax impregnation secures the integrity of the windings and greatly reduces unwanted distortion and microphonic effect.

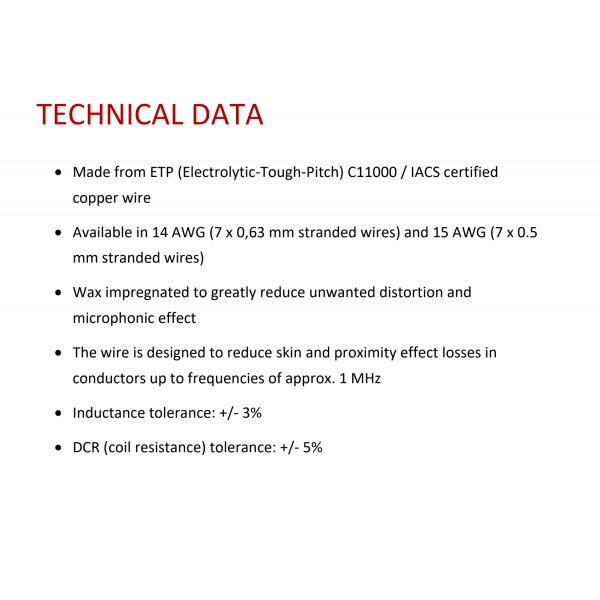

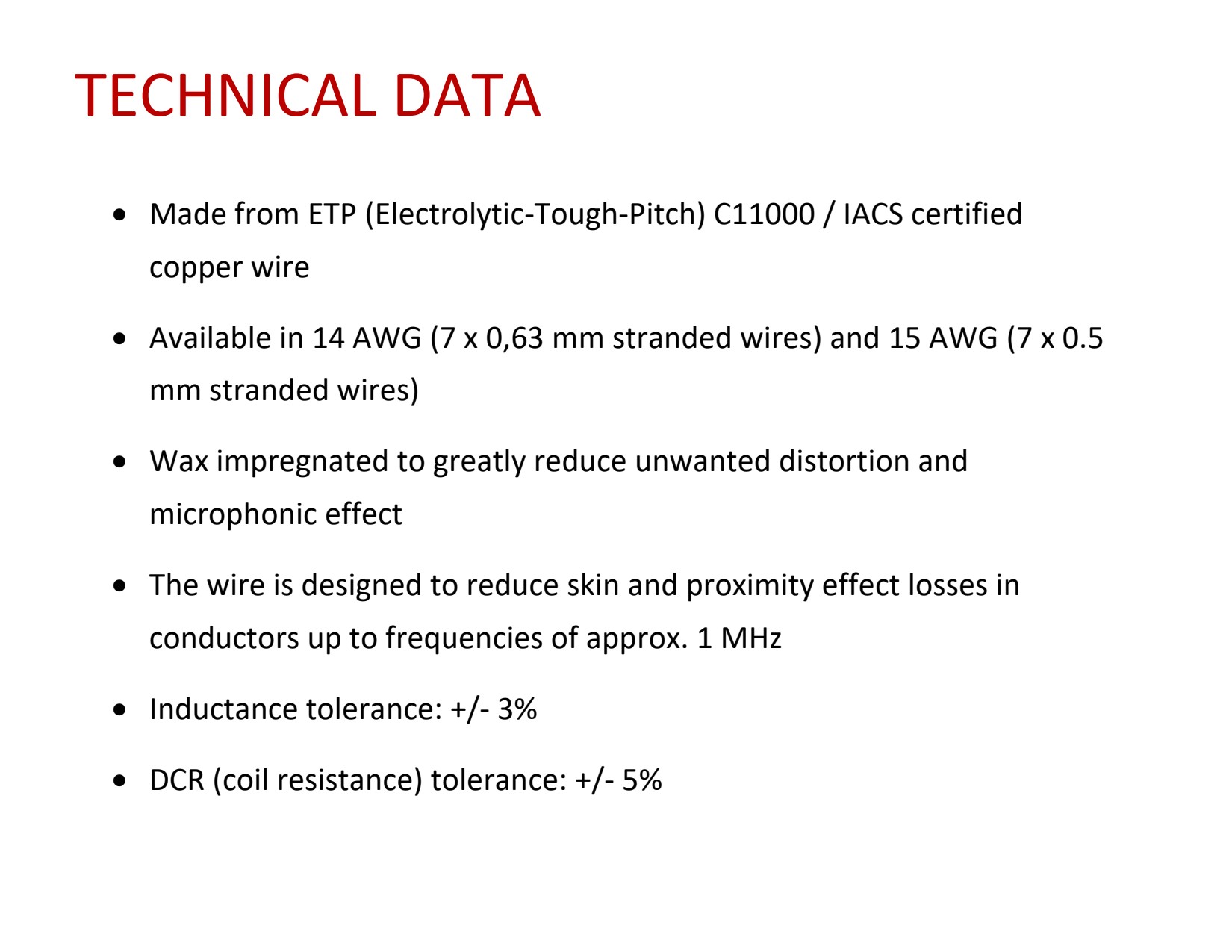

TECHNICAL DATA
Made from ETP (Electrolytic-Tough-Pitch) C11000 / IACS certified copper wire
Available in 15 AWG (7 x 0.5 mm stranded wires)
Wax impregnated to greatly reduce unwanted distortion and microphonic effect
The wire is designed to reduce skin and proximity effect losses in conductors up to frequencies of approx. 1 MHz
Inductance tolerance: +/- 3%
DCR (coil resistance) tolerance: +/- 5%
ราคา LITZ WIRE WAX COIL 15 awg
(Wire 7x0,50mm -1,40mm - 15 AWG)
(ปรับราคา เม.ย.2568)
Inductance |
RDC |
Inner ø |
Outer ø |
Height |
ราคา |
Remark |
0.10 |
0.09 |
25 |
46 |
20 |
570 |
Pre Order |
0.12 |
0.11 |
25 |
46 |
20 |
590 |
Pre Order |
0.13 |
0.11 |
25 |
46 |
20 |
630 |
Pre Order |
0.15 |
0.12 |
25 |
47 |
20 |
660 |
Pre Order |
0.18 |
0.13 |
25 |
50 |
20 |
770 |
Pre Order |
0.20 |
0.15 |
25 |
55 |
20 |
800 |
Pre Order |
0.22 |
0.15 |
25 |
55 |
20 |
830 |
In Stock |
0.25 | 0.15 | 25 | 55 | 20 | 880 | Pre Order |
0.27 |
0.16 |
25 |
55 |
20 |
900 |
In Stock |
0.30 | 0.16 | 25 | 58 | 20 | 930 | Pre Order |
0.33 |
0.17 |
25 |
58 |
20 |
980 |
In Stock |
0.36 | 0.20 | 25 | 58 | 30 | 1080 | Pre Order |
0.39 |
0.20 |
25 |
58 |
30 |
1100 |
In Stock |
0.42 | 0.22 | 25 | 58 | 30 | 1120 | Pre Order |
0.45 | 0.22 | 25 | 58 | 30 | 1140 | Pre Order |
0.47 |
0.22 |
25 |
58 |
30 |
1170 |
In Stock |
0.50 | 0.25 | 25 | 58 | 30 | 1220 | Pre Order |
0.56 |
0.24 |
25 |
58 |
30 |
1330 |
In Stock |
0.60 | 0.26 | 25 | 58 | 30 | 1350 | Pre Order |
0.62 | 0.26 | 25 | 58 | 13 | 1360 | Pre Order |
0.68 |
0.29 |
25 |
58 |
30 |
1450 |
In Stock |
0.70 | 0.29 | 25 | 58 | 30 | 1500 | Pre Order |
0.75 | 0.30 | 25 | 58 | 30 | 1550 | Pre Order |
0.82 |
0.31 |
25 |
58 |
30 |
1600 |
In Stock |
0.87 |
0.32 |
25 |
58 |
30 |
1700 |
Pre Order |
1.00 |
0.34 |
25 |
62 |
30 |
1770 |
In Stock |

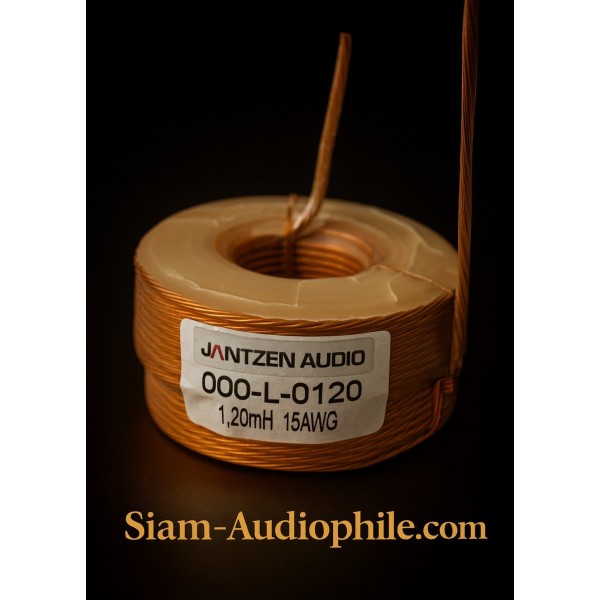

1.20 |
0.39 |
25 |
63 |
30 |
2070 |
In Stock |
1.30 |
0.40 |
25 |
70 |
30 |
2150 |
Pre Order |
1.40 |
0.45 |
25 |
70 |
30 |
2200 |
Pre Order |
1.50 |
0.45 |
25 |
70 |
30 |
2300 |
In Stock |
1.70 | 0.47 | 25 | 70 | 30 | Call,Line | Pre Order |
1.80 | 0.48 | 25 | 70 | 30 | Call,Line | Pre Order |
2.00 | 0.51 | 25 | 73 | 30 | Call,Line | Pre Order |
2.20 | 0.56 | 25 | 71 | 30 | Call,Line | Pre Order |
2.50 | 0.58 | 25 | 76 | 30 | Call,Line | Pre Order |
2.70 | 0.60 | 25 | 76 | 30 | Call,Line | Pre Order |
3.00 | 0.64 | 25 | 79 | 30 | Call,Line | Pre Order |
3.30 | 0.76 | 35 | 67 | 60 | Call,Line | Pre Order |
3.60 | 0.77 | 35 | 70 | 60 | Call, Line | Pre Order |
3.80 | 0.78 | 35 | 70 | 60 | Call,Line | Pre Order |
3.90 | 0.80 | 35 | 70 | 60 | Call,Line | Pre Order |
เนื่องจาก Coil ของ Jantzen Audio มีค่าละเอียดมาก
ท่านที่ต้องการค่าอื่นๆ ที่นอกเหนือจากรายการนี้
สามารถสอบถามได้ค่ะ
