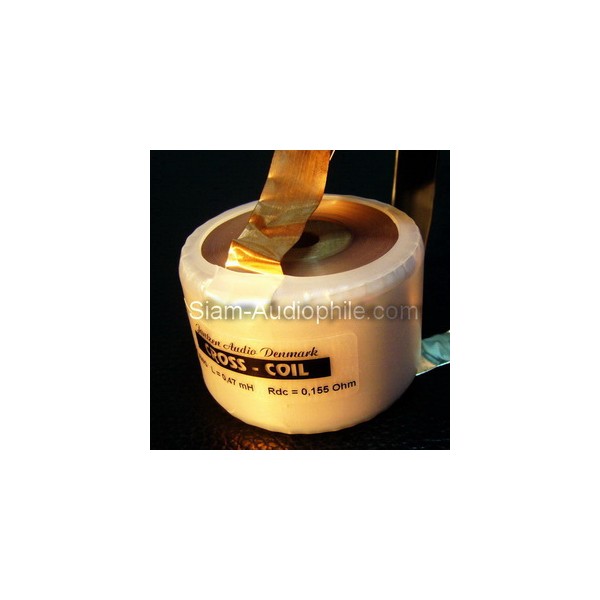

Jantzen Cross Coil 14AWG

CROSS COIL

PURE COPPER FOIL AUDIO INDUCTOR

PRODUCT FEATURE

The Cross Coil was developed in cooperation with Mr. Per Skaaning from Audio Technology™ (Denmark).

It is a high-performance foil inductor offering improved power handling and dynamic head room.

Using pure copper foil, we have insured a better surface for electron travel, a better distortion reduction, a higher power handling and improved dynamic headroom, compared to wire-based inductors.

The coil is wrapped in clear shrink foil to protect the outer layer of foil and to help maintain the integrity of the windings.

We know that with rising frequency, the electrons will move towards the surface. This Phenomenon is known as power distortion. Therefore, we need as large a surface as we can get, to prevent the electrons from getting “squeezed" on their path to the surface.

TECHNICAL DATA

Made from ETP (Electrolytic-Tough-Pitch) copper foil

The copper foil is C11000 / IACS certified

Available in 8, 12, 14 and 16 AWG

Inductance tolerance: +/- 2%

DCR (coil resistance) tolerance: +/- 5%

Insulation: Polypropylene shrink foil (clear)

Estimated maximum power handling:

16 AWG – approx. 350 watts RMS

14 AWG – approx. 500 watts RMS

12 AWG – approx. 650 watts RMS

8 AWG – approx. 850 watts RMS

ตารางราคา Jantzen Inductor Cross Coil 14AWG

	RDC	Outer Diameter	Height	Price/Ea.
[mH]	[Ω]	[mm]	[mm]	(THB)
0.100	0.070	41	38	*1,0004week**
0.150	0.090	45	38	*1,1504week**
0.180	0.100	47	38	*1,2004week**
0.200	0.100	48	38	*1,2504week**
0.220	0.110	49	38	*1,300instock**
0.240	0.110	49	38	*1,3304week**
0.250	0.110	50	38	*1,3504week**
0.270	0.120	51	38	*1,370instock**
0.300	0.120	52	38	*1,4504week**
0.330	0.140	53	38	*1,4804week**
0.390	0.150	55	38	*1,5704week**
0.430	0.160	57	38	*1,7004week**
0.470	0.160	57	38	*1,700instock**
0.500	0.170	59	38	*1,7204week**
0.560	0.180	60	38	*1,800instock**
0.620	0.190	61	38	*1,9004week**
0.680	0.210	63	38	*1,900instock**
0.750	0.220	65	38	*2000 4week**
0.820	0.230	66	38	*2,100instock**
1.000	0.270	69	38	*2,250instock**
1.200	0.290	72	38	*2,470instock**
1.500	0.340	77	38	*2,700instock**
1.800	0.370	80	38	*3,000instock**
2.000	0.400	82	38	*3,1004week**
2.200	0.420	85	38	*3,2504week**
2.500	0.440	88	38	*3,4504week**
2.700	0.460	91	38	*3,6004week**
3.300	0.510	96	38	*4,0204week**
3.900	0.530	101	38	*4,3504week**
4.700	0.620	106	38	*4,8504week**
