Jantzen Cross Coil 16AWG

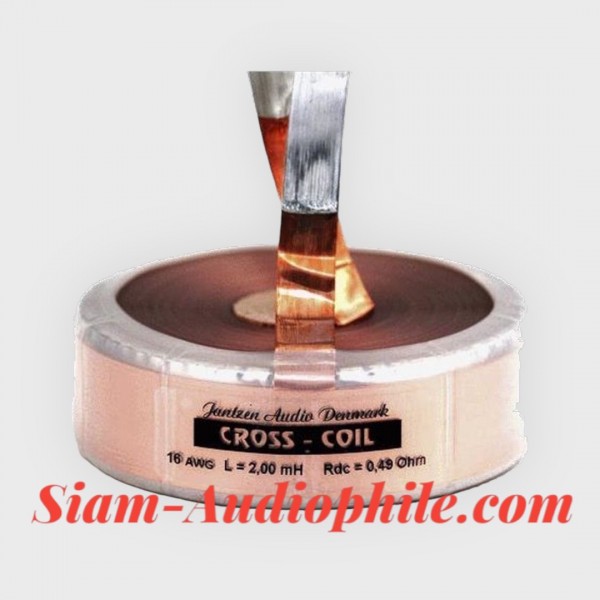

CROSS COILPURE COPPER FOIL AUDIO INDUCTOR

PRODUCT FEATURE

The Cross Coil was developed in cooperation with Mr. Per Skaaning from Audio Technology™ (Denmark). It is a high-performance foil inductor offering improved power handling and dynamic head room.  Using pure copper foil, we have insured a better surface for electron travel, a better distortion reduction, a higher power handling and improved dynamic headroom, compared to wire-based inductors.

The coil is wrapped in clear shrink foil to protect the outer layer of foil and to help maintain the integrity of the windings.

We know that with rising frequency, the electrons will move towards the surface. This Phenomenon is known as power distortion. Therefore, we need as large a surface as we can get, to prevent the electrons from getting “squeezed" on their path to the surface.



Jantzen Inductor - Cross Coil 16AWG


    Outer Diameter Height      Price/Ea.
 [mH] RDC[Ω]     [mm]  [mm]          (THB)
0.100 0.100      40   27 800
0.150 0.120      43   27 850
0.180 0.130      45   27 900
0.200 0.140      46   27 930
0.220 0.150      47   27 950
0.240 0.160      47   27 980
0.270 0.170      48   27 1,000
0.300 0.180      49   27 1,050
0.330 0.190      51   27 1,080
0.360 0.200      51   27 1,100
0.390 0.210      52   27 1,150
0.430 0.220      54   27 1,180
0.470 0.230      55   27 1,200
0.510 0.240      57   27 1,250
0.560 0.250      57   27 1,300
0.620 0.270      59   27 1,350
0.680 0.290      60   27 1,400
0.820 0.320      62   27 1,500
0.900 0.340      63   27 1,550
1.000 0.370      65   27 1,600




TECHNICAL DATA

  • Made from ETP (Electrolytic-Tough-Pitch) copper foil
  • The copper foil is C11000 / IACS certified
  • Available in 8, 12, 14 and 16 AWG
  • Inductance tolerance: +/- 2%
  • DCR (coil resistance) tolerance: +/- 5%
  • Insulation: Polypropylene shrink foil (clear)
  • Estimated maximum power handling:

16 AWG – approx. 350 watts RMS



เนื่องจาก Coil ของ Jantzen Audio มีค่าละเอียดมาก

ท่านที่ต้องการค่าอื่นๆ ที่นอกเหนือจากรายการนี้

สามารถสอบถามได้ค่ะ



ท่านสามารถสั่งซื้อสินค้าได้ที่ช่องทาง

  TEL. 089 515 5788

   Line ID : siamaudiophile
