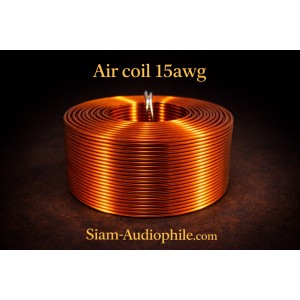

Jantzen Wire Coil 15AWG

รายละเอียดและราคา

Jantzen Wire Coil 20AWG

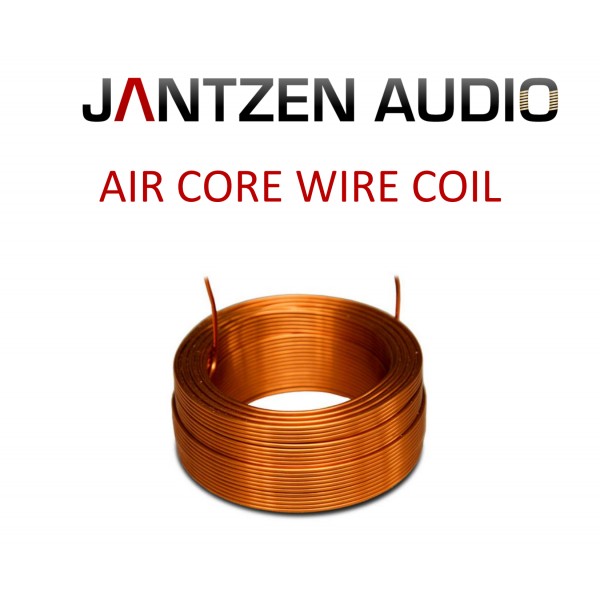

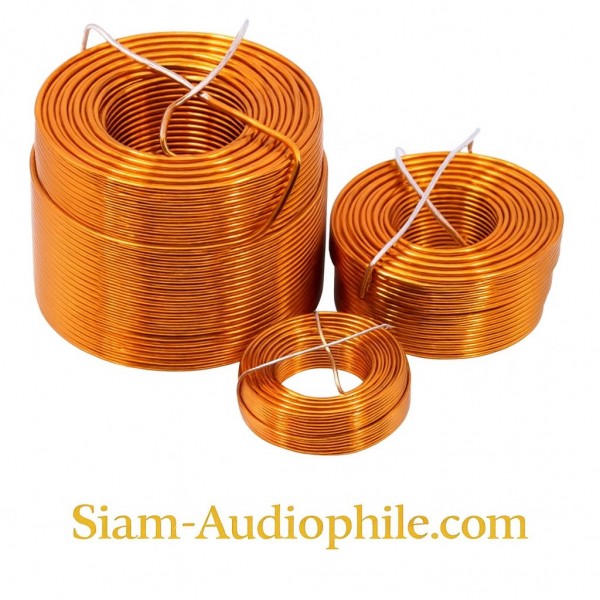

Jantzen Inductor - Wire Coil 20AWG

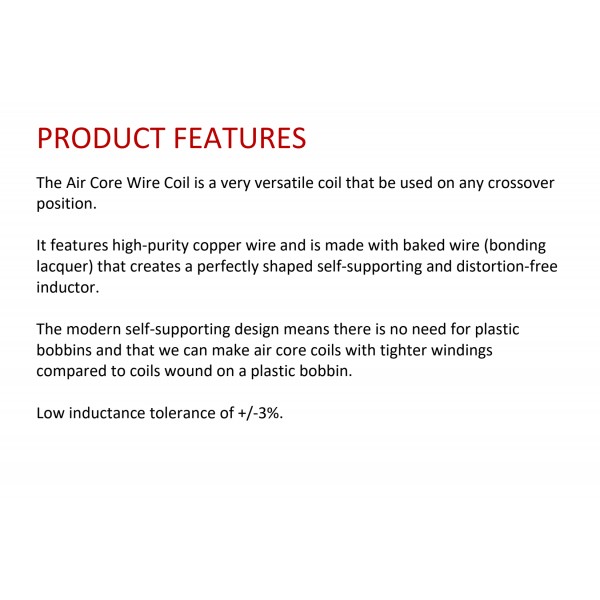

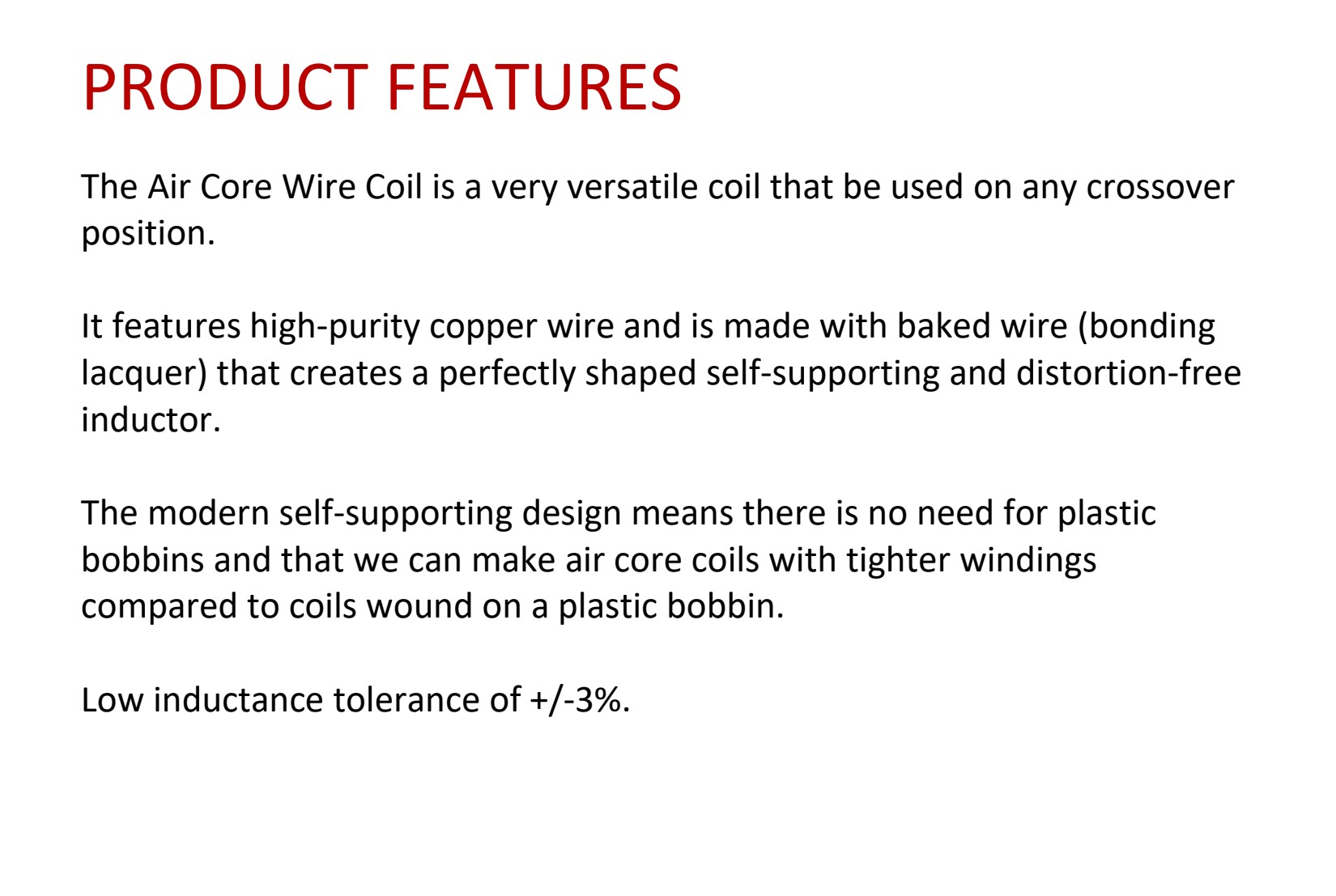

...PRODUCT FEATURES...

High-purity copper wire, “baked” into a perfect shape to create a distortion-free inductor, for all audio applications.

Modern self-supporting design with no need for plastic bobbins.

Low inductance tolerance of +/-3% and power handling depending on the wire used, makes it the most versatile coil on the market.

High-purity copper wire, “baked” into a perfect shape to create a distortion-free inductor, for all audio applications.

Modern self-supporting design with no need for plastic bobbins.

Low inductance tolerance of +/-3% and power handling depending on the wire used, makes it the most versatile coil on the market.

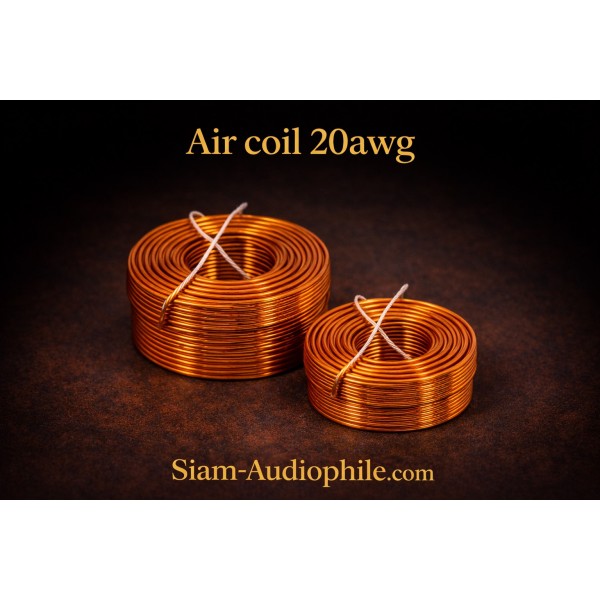

Wire Coil 20AWG (wire dia 0.8mm)

	DCR	Inner ø	Outer ø	Height	Price/Ea.
[mH]	[Ω]	[mm]	[mm]	[mm]	(THB)
0.005	0.060	9	9	8	160
0.010	0.070	8	14	25	180
0.015	0.080	8	14	25	205
0.030	0.120	9	20	8	210
0.050	0.124	9	23	8	220
0.100	0.190	20	31	10	170
0.120	0.210	20	31	10	175
0.150	0.230	20	32	10	190
0.180	0.250	20	34	10	200
0.200	0.290	20	34	10	210
0.220	0.300	20	34	10	210
0.240	0.310	20	35	10	215
0.270	0.330	20	36	10	225
0.300	0.362	15	29		230
0.330	0.390	15	30		240
0.360	0.400	15	31		250
0.390	0.420	15	31		260
0.430	0.445	15	32		265
0.470	0.470	15	32		270
0.500	0.495	15	33		280
0.560	0.510	15	34		290
0.620	0.550	15	35		300
0.680	0.560	15	35		310
0.750	0.590	15	36		320
0.820	0.630	15	36		330
0.920	0.680	15	38		340
1.000	0.710	15	38	15	350
1.200	0.800	15	41	15	380
1.500	0.900	15	43	15	410
1.800	1.030	15	45	15	460
2.000	1.080		45	15	480
2.200	1.200	15	46	15	490
2.500	1.280	15	48	15	520
2.700	1.310	25	52	15	540
3.000	1.380	25	44	30	590
3.300	1.550		43	30	600
4.000	1.700	25	45	30	650
4.300	1.800	25	47	30	660
4.700	1.900	25	46	30	680
5.000	1.950	25	48	30	710
5.600	2.100	25	48	30	765
6.800	2.300	25	52	30	880
8.000	2.540	25	54	30	980
10.000	2.880	25	55	30	1,070
12.000	3.290	25	57	30	1,230
20.000	5.100	35	57	60	2,180
28.000	5.970	35	60	60	2,480
34.000	6.820	35	64	60	2,720
40.000	7.500	25	59	66	3,350
50.000	8.720	25	61	66	3,680
70.000	11.060		67	66	4,200
100.000	12.610	25	72	66	5,000
