Jantzen Alumen z-cap

รายละเอียดและราคา

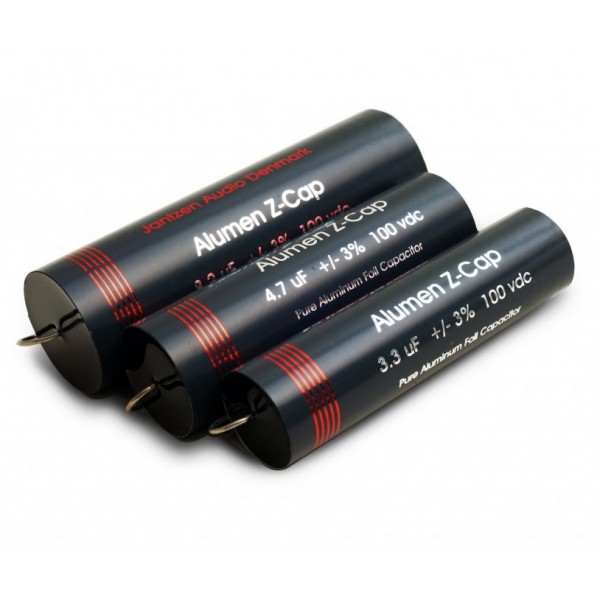

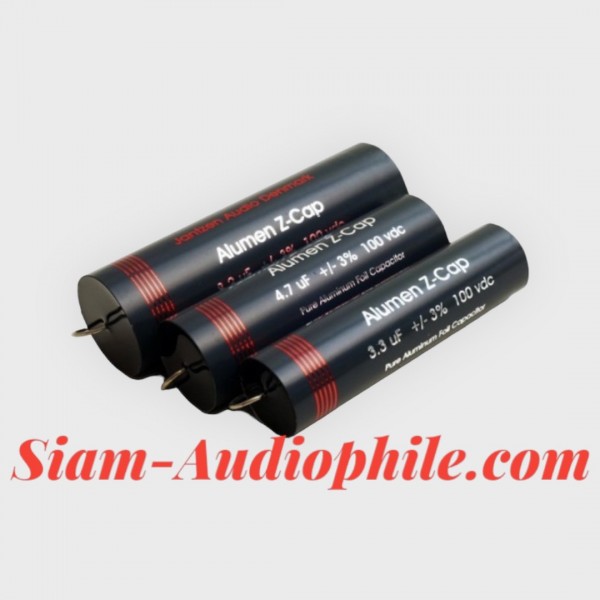

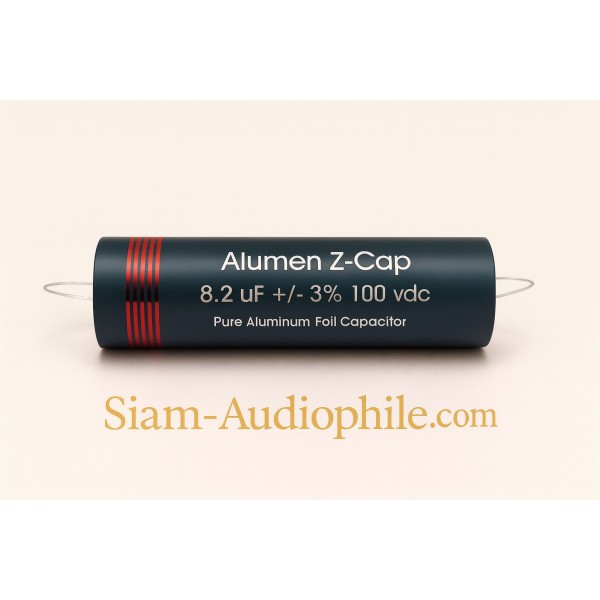

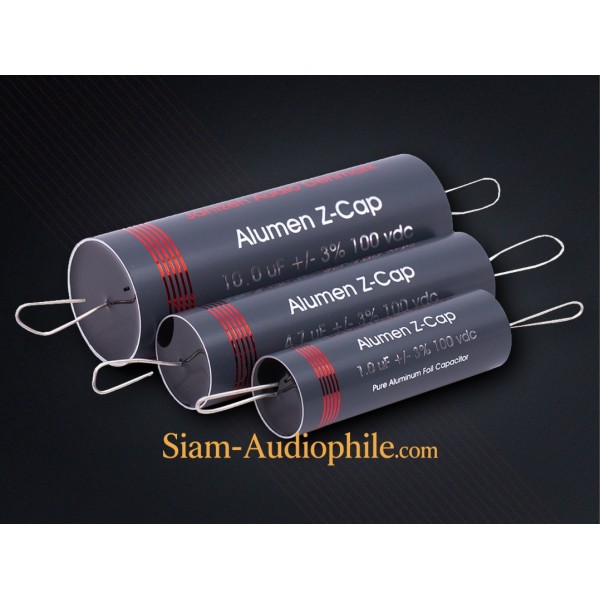

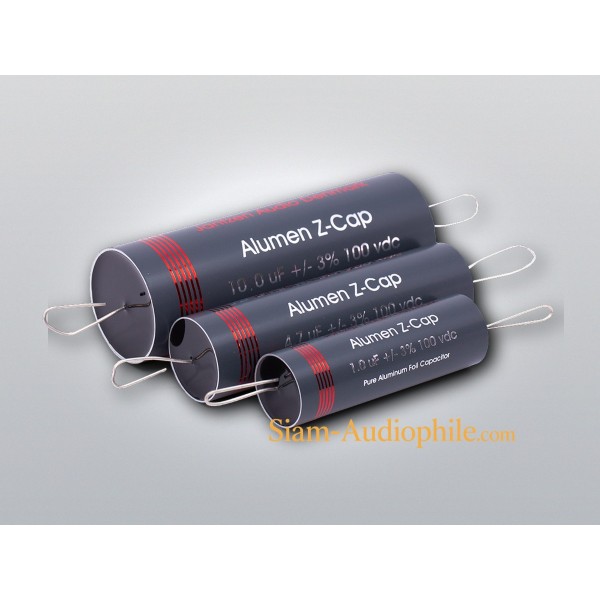

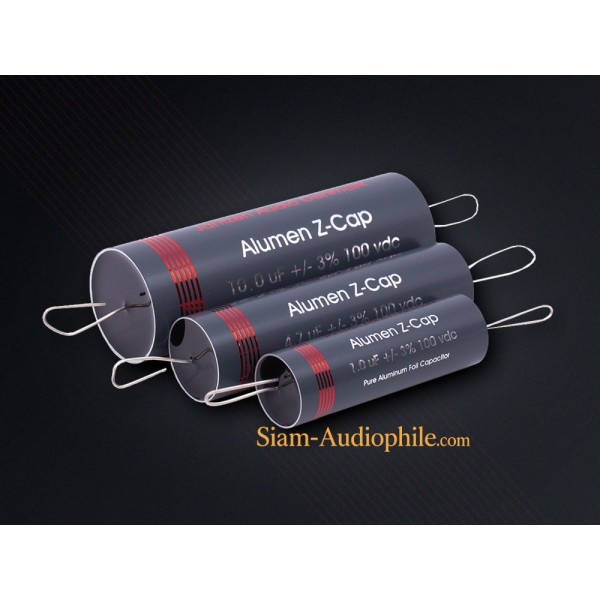

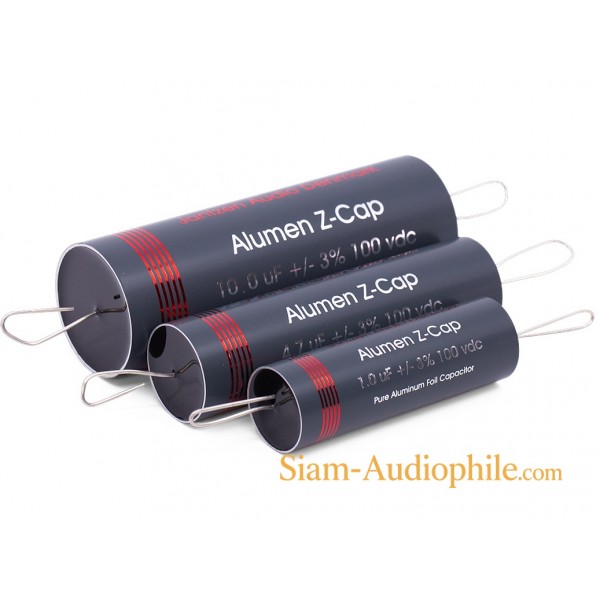

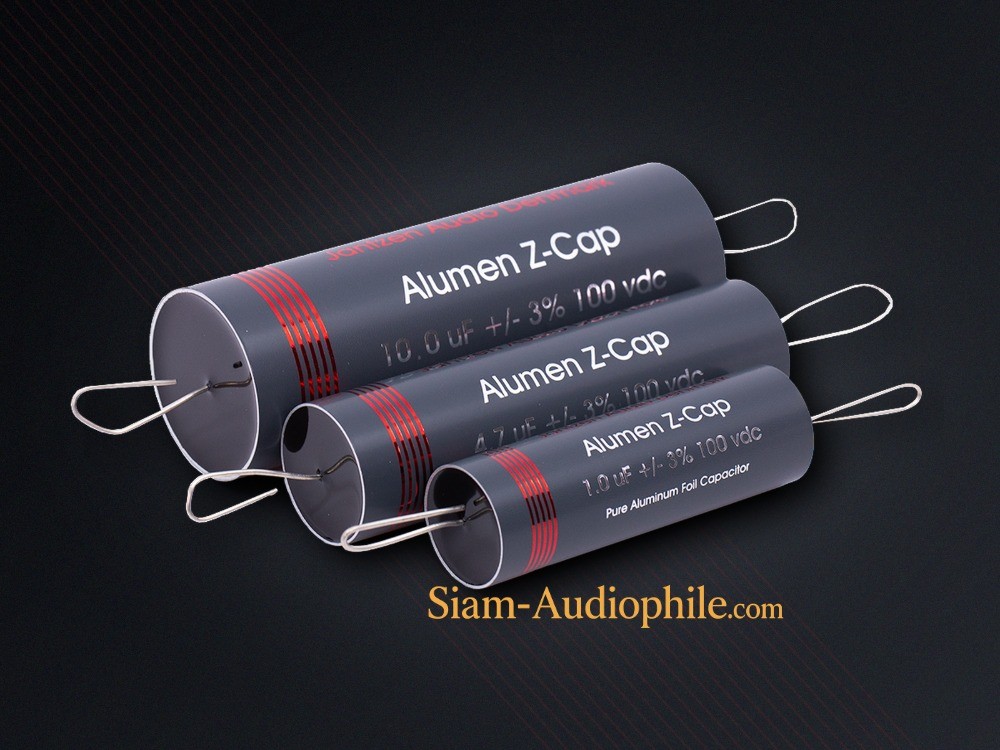

Jantzen Alumen-Z cap

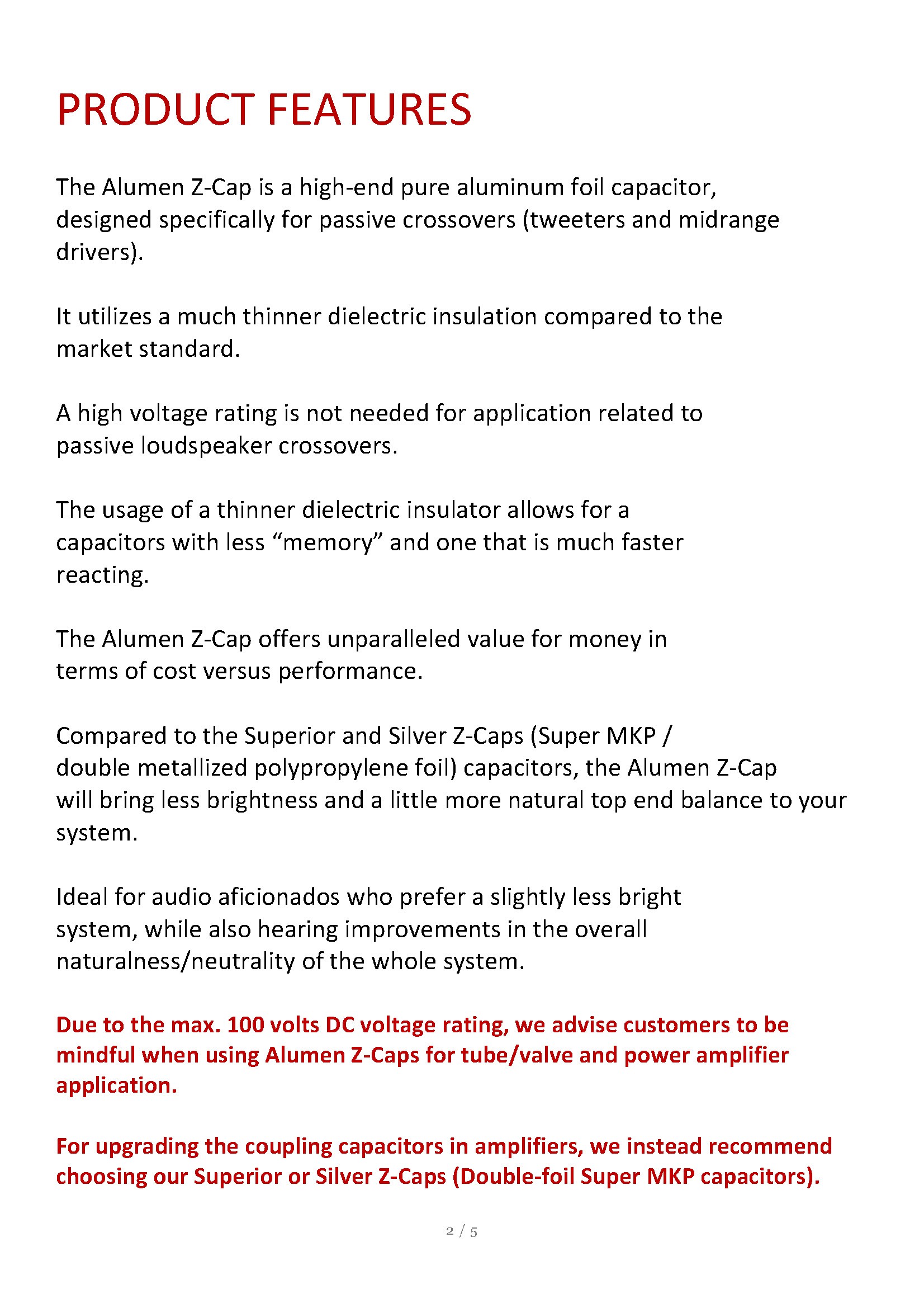

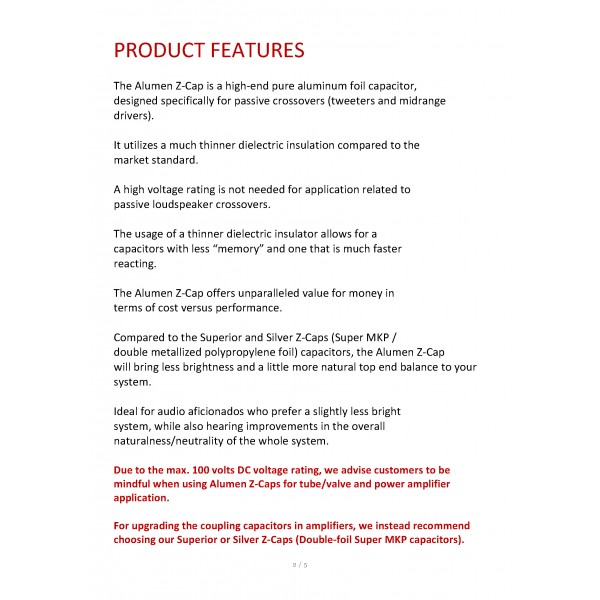

PRODUCT FEATURES

The Alumen Z-Cap is a high-end pure aluminum foil capacitor, designed specifically for passive crossovers (tweeters and midrange drivers).

It utilizes a much thinner dielectric insulation compared to the

market standard.

A high voltage rating is not needed for application related to passive loudspeaker crossovers.

The usage of a thinner dielectric insulator allows for a capacitors with less “memory” and one that is much faster reacting.

The Alumen Z-Cap offers unparalleled value for money in

terms of cost versus performance.

Compared to the Superior and Silver Z-Caps (Super MKP /

double metallized polypropylene foil) capacitors, the Alumen Z-Cap

will bring less brightness and a little more natural top end balance to your system.

Ideal for audio aficionados who prefer a slightly less bright

system, while also hearing improvements in the overall naturalness/neutrality of the whole system.

ALUMEN Z-CAP

PURE ALUMINUM FOIL CAPACITOR

Due to the max. 100 volts DC voltage rating, we advise customers to be mindful when using Alumen Z-Caps for tube/valve and power amplifier application.

For upgrading the coupling capacitors in amplifiers, we instead recommend choosing our Superior or Silver Z-Caps (Double-foil Super MKP capacitors).

PRODUCT FEATURES

The Alumen Z-Cap is a high-end pure aluminum foil capacitor, designed specifically for passive crossovers (tweeters and midrange drivers).

It utilizes a much thinner dielectric insulation compared to the

market standard.

A high voltage rating is not needed for application related to passive loudspeaker crossovers.

The usage of a thinner dielectric insulator allows for a capacitors with less “memory” and one that is much faster reacting.

The Alumen Z-Cap offers unparalleled value for money in

terms of cost versus performance.

Compared to the Superior and Silver Z-Caps (Super MKP /

double metallized polypropylene foil) capacitors, the Alumen Z-Cap

will bring less brightness and a little more natural top end balance to your system.

Ideal for audio aficionados who prefer a slightly less bright

system, while also hearing improvements in the overall naturalness/neutrality of the whole system.

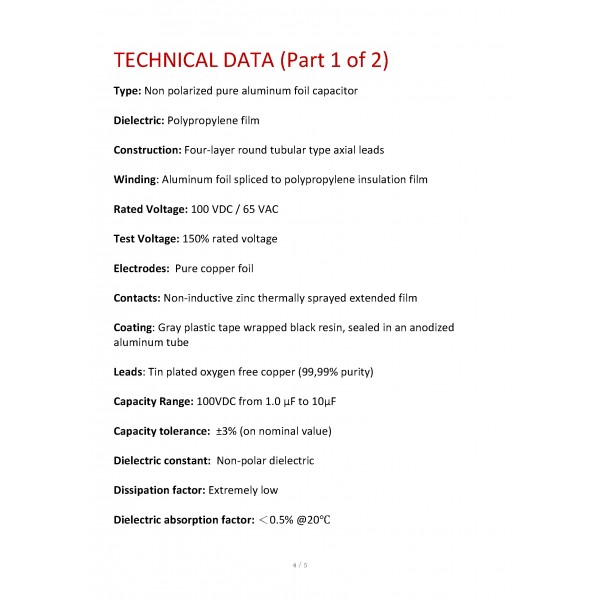

TECHNICAL DATA

Type: Non polarized pure aluminum foil capacitor

Dielectric: Polypropylene film

Construction: Four-layer round tubular type axial leads

Winding: Aluminum foil spliced to polypropylene insulation film

Rated Voltage: 100 VDC / 65 VAC

Test Voltage: 150% rated voltage

Electrodes: Pure copper foil

Contacts: Non-inductive zinc thermally sprayed extended film

Coating: Gray plastic tape wrapped black resin, sealed in an anodized aluminum tube

Leads: Tin plated oxygen free pure copper

Capacitance Range: 100VDC from 1.0 μF to 10μF

Capacitance tolerance: ±3% (on nominal value)

Dielectric constant: Non-polar dielectric

Dissipation factor: Extremely low

Dielectric absorption factor: ＜0.5% @20℃

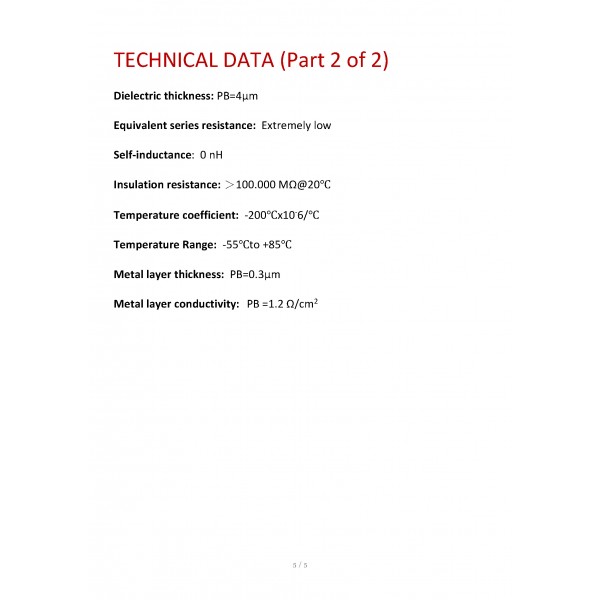

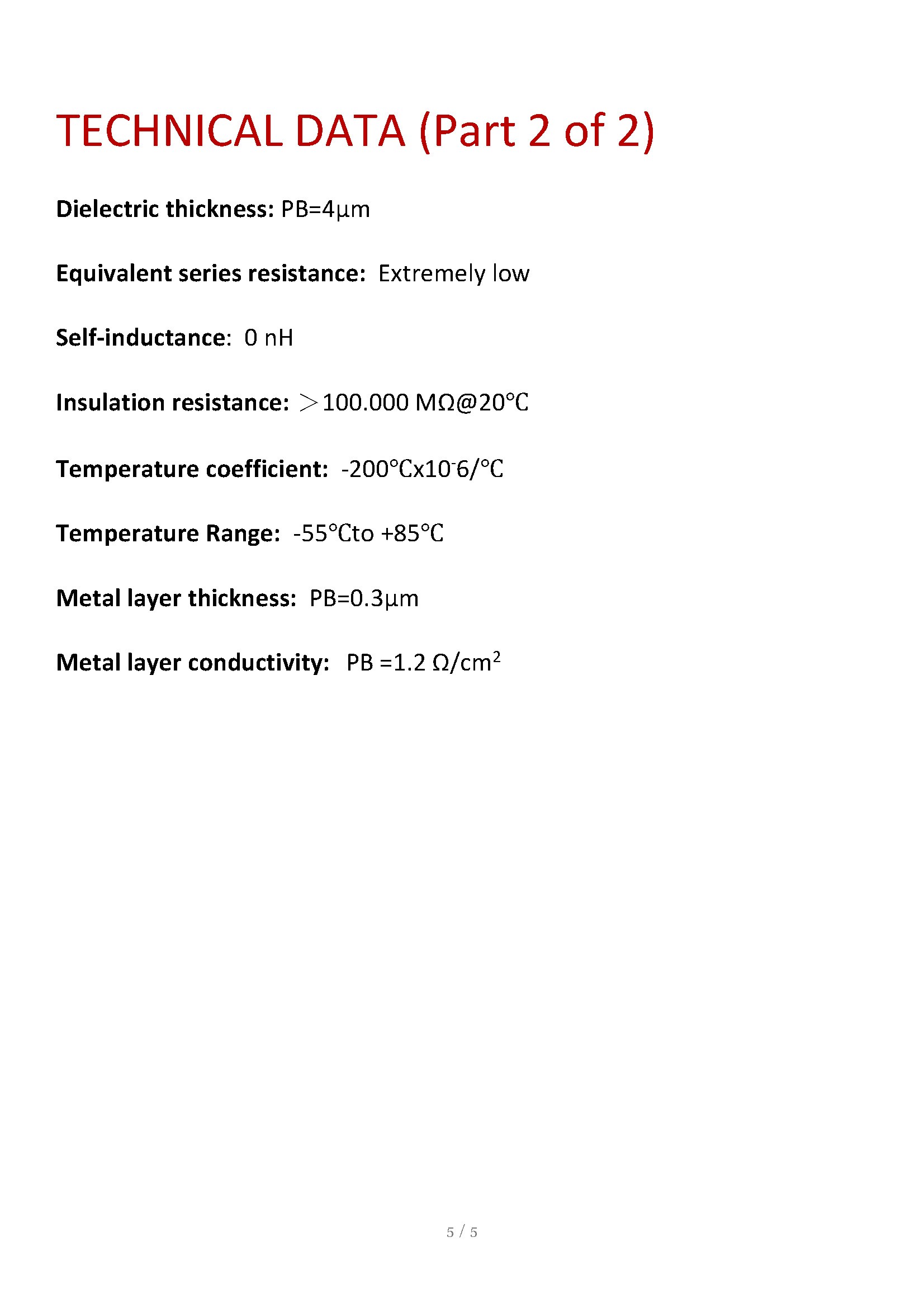

Dielectric thickness: PB=4µm

Equivalent series resistance: Extremely low

Self-inductance: 0 nH

Insulation resistance: ＞100.000 MΩ@20℃

Temperature coefficient: -200x10-6/℃

Temperature Range: -55℃to +85℃

Metal layer thickness: PB=0.3µm

Metal layer conductivity: PB =1.2 Ω/cm2

ตารางราคา Jantzen Alumen Z-cap

uF	VDC	Dia.	Hor.	Price/Ea.
uF	VDC	mm	mm	(THB)
0.47	100	17.00	44.00	1,270
1.00	100	22.00	70.00	1,540
1.50	100	26.00	80.00	1,850
2.20	100	22.00	80.00	2,120
2.70	100	26.00	96.00	2,230
3.30	100	26.00	96.00	2,410
3.90	100	26.00	96.00	2,540
4.70	100	26.00	96.00	2,730
5.60	100	30.00	96.00	3,030
6.80	100	31.00	105.00	3,470
8.20	100	31.00	105.00	3,850
10.00	100	36.00	105.00	4,560
